Hey, I would appreciate if you could help. I have an ARC-32 and a ps2 controller of the Genius brand … I tried several ways to gain control over my hexapod with the controller … but have not even the programming code of the tutorial …///// lynxmotion.com/images/html/build034.htm \ \ \ \ \ \ \ … but results not are positives… simply not able to establish communication…I have checked the connections and are correct…and i dont have idea why not work … I have reviewed other tutorials and get the same … thanks …
You might need pull-up resistors on the data and clock lines of the PS2 depending on which I/O pins you select. The BotBoard II had a block of I/O (P11-15) with the resistors incorporated. Use of other pins usually necessitated adding the resistors. Search the forum, this has been the topic of discussion before.
Alan KM6VV
I have working PS2 code for an Arc32 as part of the Arc32 phoenix thread (viewtopic.php?f=8&t=6042). The code for it is up in several of the zip files that are posted in that thread.
I use the pins that are part of the Aux2 header (P40-43) These pins have pull-up resistors already attached to them.
Kurt
That should solve a few problems for him!
Thanks for jumping in Kurt, I thought you’d posted on the solution somewhere.
Alan KM6VV
Thanks for the contribution about pinouts and the post … … but I’m having problems with the control … I think I have problems with the analog system activation button change … so I do not respond … I test it on the PS2 and if it works … must be a problem with the programming but not I can think of nothing
Note: Not all PS2 controllers are created equal. Is it wired or wireless? Some wireless I have never been able to make work others requrie a second power connection to the vibrate wire…

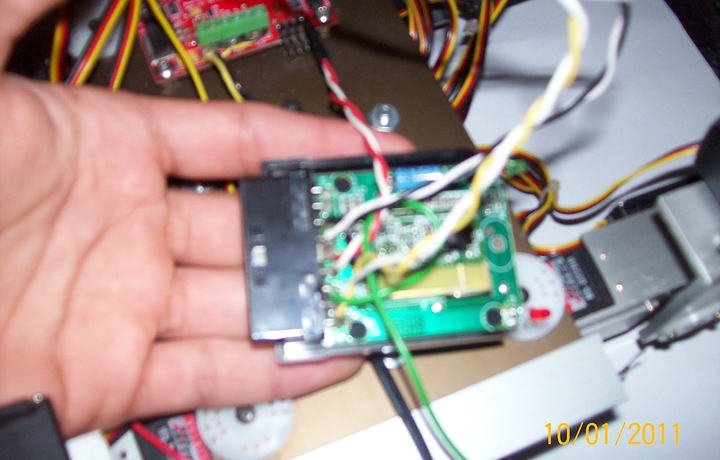

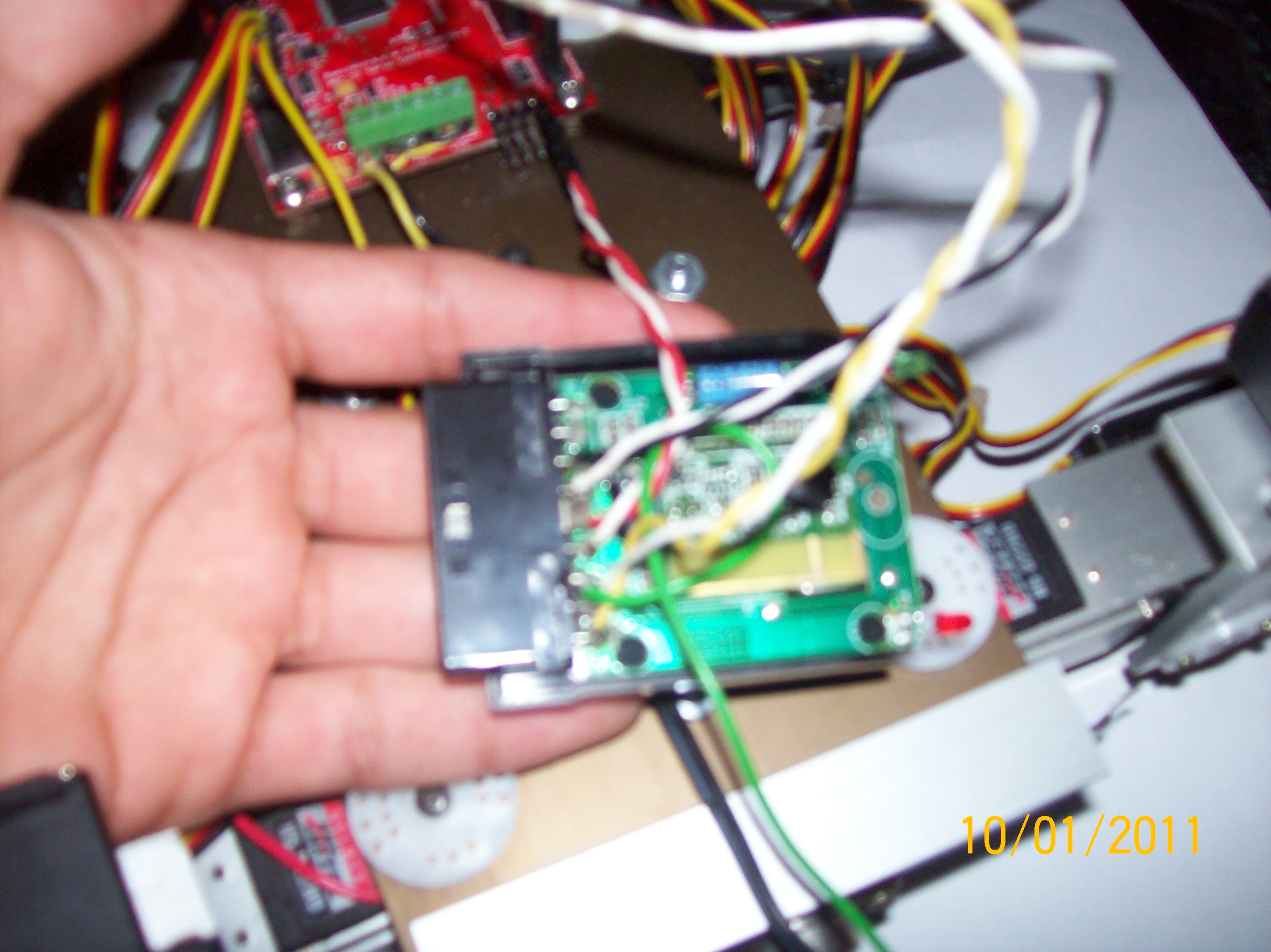

the control is wireless and if I think I need the cable for the engines, but the green wire is connected …is posible this control may not work with the same system.
Always hard to say. I know that for example Logitech PS2 units have been difficult to get working properly…
Are you getting any results from the PS2 controller with the test app?
Here is a version of a test PS2 test app for Arc32, that works with my Phoenix. I have it configured to dump data when it changes… You might try it out and see if you are getting anything…
Kurt
arc32 ps2 test.bas (3.44 KB)
with the program…produce as result on the terminal FF 255 255 255 255 255 255…and the problem is that the analog system not are active…the botton for change the mode… the light is off and will not turn…

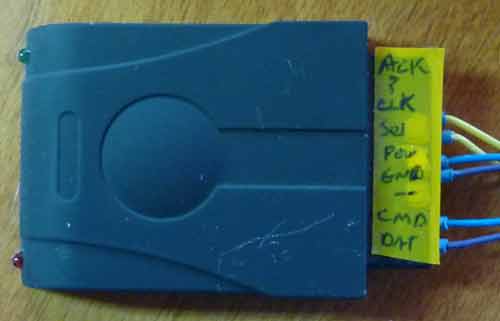

Not sure what else to tell you other than make sure you are giving the receiver +5v (or +3.3v) and not the servo battery voltage. Likewise make sure that the signals are plugged in the right order. On My Arc32 I am not using the PS2 cable, but instead using the equivalent of the cable kit: lynxmotion.com/p-714-ps2-con … e-kit.aspx (can make with two servo extension cables). I then end up putting a piece of tape on the PS-2 receiver and write the signal names on it. That way I usually don’t get the signals messed up… Example:
If it were on my machine I would hook it up to a logic analyzer and see if it is responding at all. So far it does not look like it is receiving.
Good Luck
Kurt
ohh good thanks kurt … I will keep trying but I would like to know which brands works fine with the ARC-32 … or you test… I would like to purchase one of Lynxmotion … … but is part of a work which I must deliver soon and I do not have enough time to get one of these…but for my proyects i will go to buy one

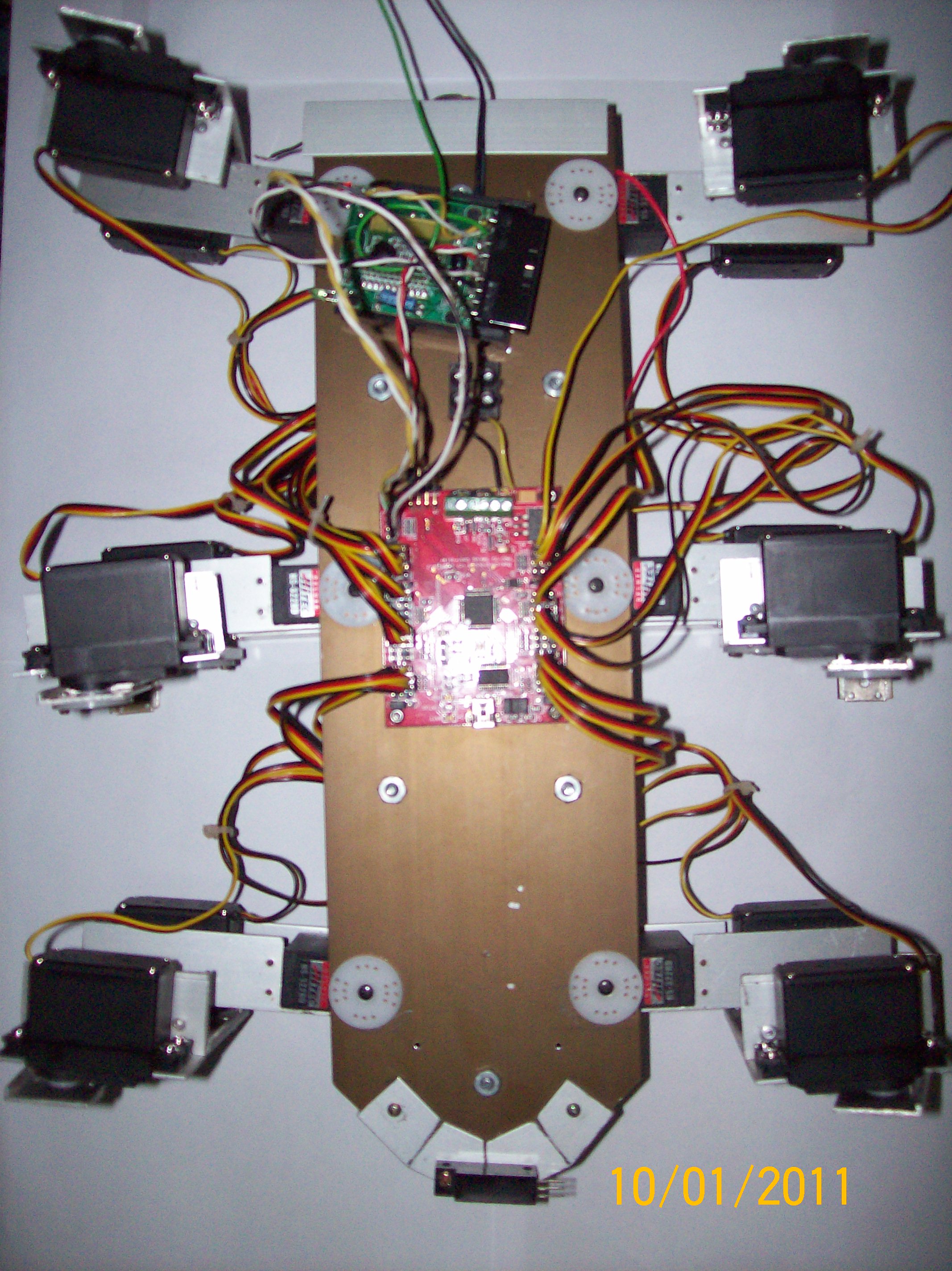

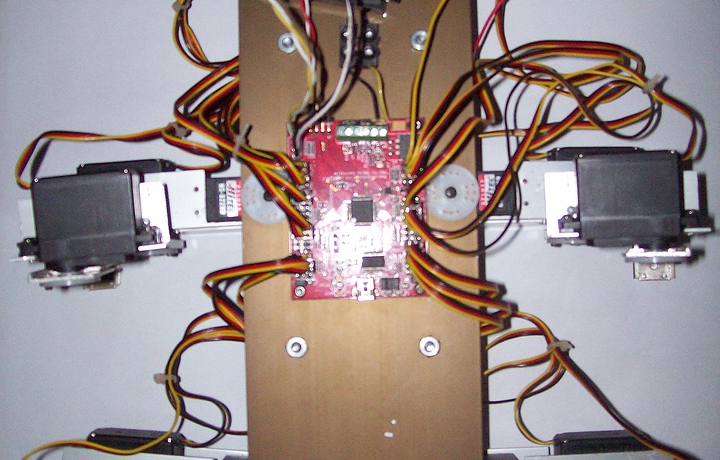

this is my project
Lots of people have had good luck with ones by Madcatz. I know that there are a few of these still around.
mm with the problem … I researched a little more and I’ve been thinking about the ACK which is a pin of recognition of the controller, it is possible that some controllers, said pin is necessary for recognition of the same or as the start of it?
I am not sure. I have not seen any that way, but than again I have not played with that many different ones. I
know some will not work if you pass in more than 5V (such as VS). I have heard that some will not work at 5V. I have read that the original PS1 ran a 5v, but the PS2 ran at something like 3.4V, so most controllers still handle the 5V but… Likewise I know that my Sector 7 one required the second power line
Sometimes it can turn out the timings are slightly different. That is sometimes you need to add/remove/modify pauses between commands.
Not sure what else…
Kurt
I saw a very clear colour diagram for hooking up the PS2 receiver to an atom pro. Is there a similar diagram for the ARC32?
I just got mp Lynxmotion PS2 controller only to find now I have to spend more postage on the cable from receiver to servo controller. I just ordered one of those so would like to know what wires go where when it gets here
Thank you very much for any help provided.
Manfred
You don’t need the cable. You can do it like this. (Step 5-7)
lynxmotion.com/images/html/build155.htm
The ARC-32 is a Basic Micro product. We never made any schematics using it.
I don’t have any diagrams either. I simply connected the PS2 to the Aux2 header (P40-43) which has built-in pull-up resistors… Used one of the ground pins on this header for ground and found a +5V connection to connect power to. I think I used one of the Servo Voltage Selection pins, where I sent VS to the servos and used the free VCC pin…
Kurt
Jim,
Thanks for the link. As it shows a botboard which bears little resemblance to the ARC32, I am unable to see it helping me.
Kurt,
Yes, I did see you mentioning that but it still does not show what goes where. From Jim’s link I know I need only 6 connections, 2 of which are for power. That leaves 4 going to Aux 2. If you could just tell me which ps2 pin goes to which aux2 pin, I’d really appreciate it.
Thanks again,
Manfred
Which pins connect to what…
If you are using the PS2 cable, then the order is (DAT, CMD, SEL, CLK) and I have DAT on P40 (which on a lot of the cables was brown)
As Kurt said simply connected the PS2 to the Aux2 header (P40-43)…
Connections
**Cable 1 = **
Black = P40
Red = P41
Yellow = P42
**Cable 2 = **
Black = GND
Red = 5vdc
Yellow = P43
