Visual sequencer

geppino · February 21, 2011, 6:20pm

hi to all, do I look for help it has who has more experience of me with the software VISUAL Sequencer, doesn’t succeed in understanding where I am wrong when I program the bb2 with this file ROB.BAS the programs you/he/she is memorized but doesn’t happen anything, who can help me?

I use this hardware:
boat board 2
basicatom pro28
scc32
and as software visual sequencer.
I attach the files.
I would like to make to make qulche custom designed movement to my robot esapode, if you want to see it is enough for him/it to digitize on youtube robogeppo.

Until I have now worked with file type phoenix v2 and all you/he/she has always worked without problems.

I apologize me for the a little correct translation
rob.zip (777 Bytes)
rob.csv (698 Bytes)
rob.bas (725 Bytes)

fish-5 · February 21, 2011, 6:31pm

Have you uploaded the sequences to the SSC-32’s EEPROM? Take a look here for more information.

geppino · February 21, 2011, 6:50pm

You can explain better me, I have loaded the file. bas on the bb2 the file. shp in the eeprom of the scc32.
What am I wrong?

fish-5 · February 21, 2011, 7:00pm

I would check to make sure the SSC-32 is set for 38.4k baud, not 115.2k like the default. You can change this by using the jumpers near the center of the board. Also be sure that you have the bot board connected to P15 on the BBII to the RX pin on the SSC-32.

If that doesn’t help, I think I’m going to need to see a picture or three of how you have everything wired up in order to help further. Unless someone else chimes in.

geppino · February 21, 2011, 7:27pm

I correct me I have written badly I load the file. epp in the eeprom of the ssc 32, and for the other parameters that you have signalled me they are equal to those from me planned.

fish-5 · February 21, 2011, 8:55pm

I don’t really know what you’re asking here…

Please describe what the LED on the SSC-32 is doing when you are trying to use it. Does it turn on? Does it blink? Does it stay steady?

Again, photos would be very helpful.

geppino · February 22, 2011, 3:07pm

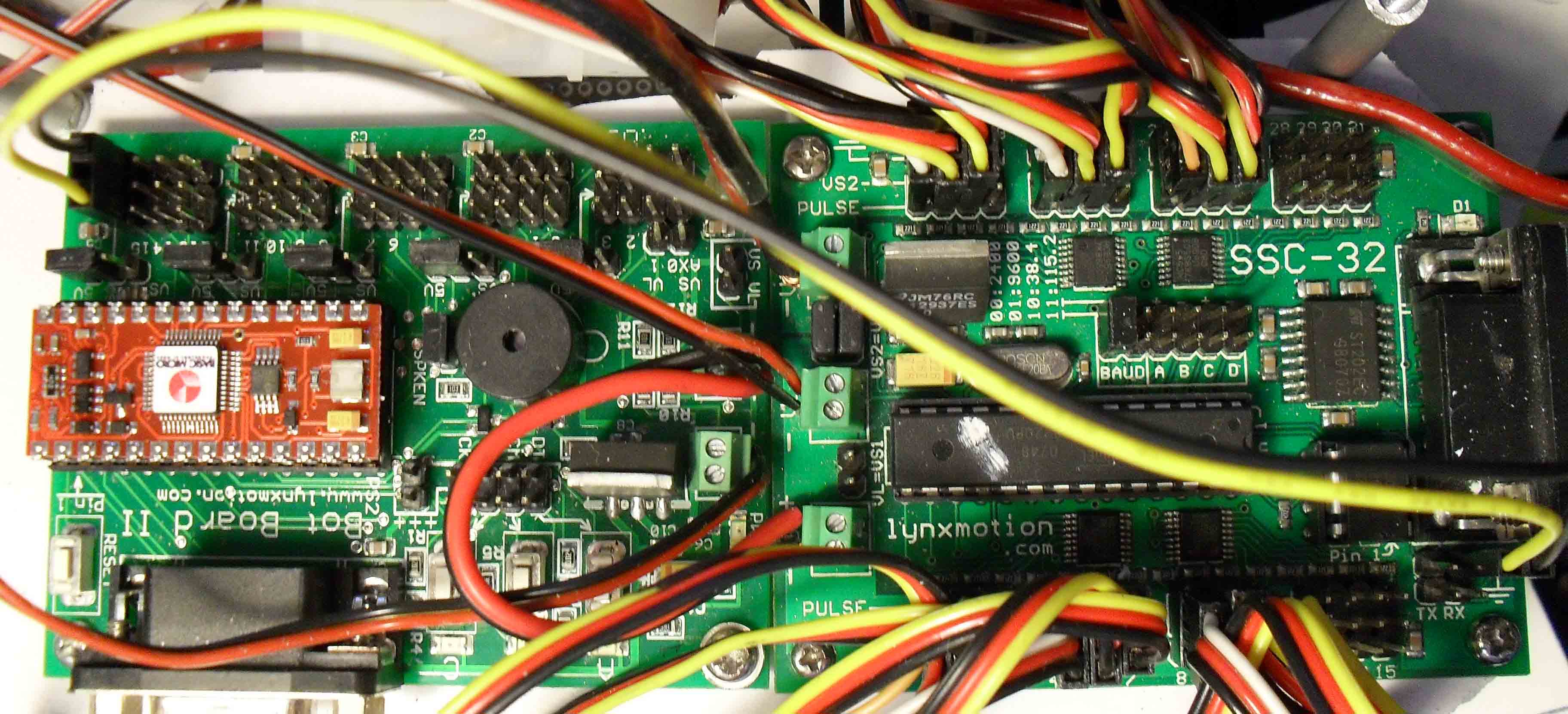

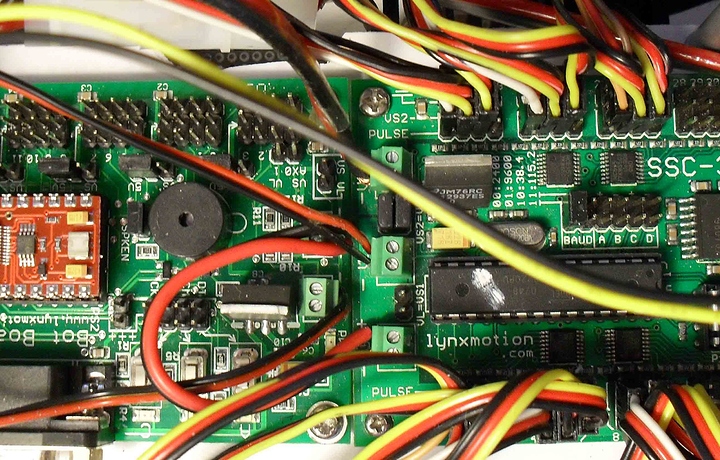

Here is the photo of the bb2 and the ssc32.

fish-5 · February 22, 2011, 3:23pm

It looks like you do not have the ground connected on the Bot Board II P15. I am unable to determine if it is connected on the SSC-32 side (TX, RX, GND pins by the DB9 port), but there needs to be a connection between these two pins.

If that doesn’t help, back up the camera and take another picture so we can see everything on the boards.

geppino · February 22, 2011, 4:23pm

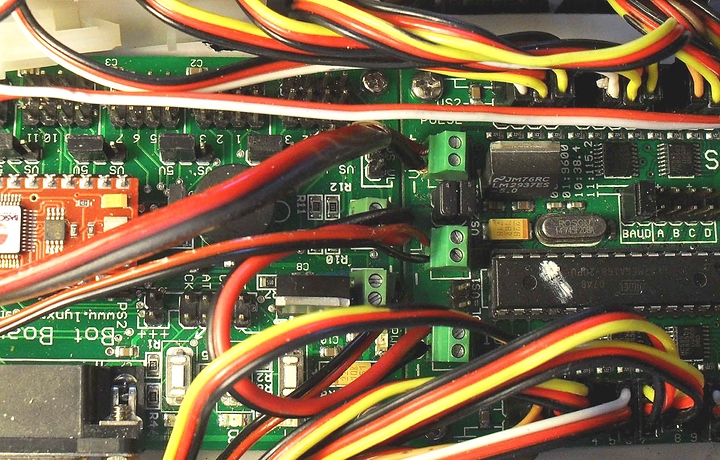

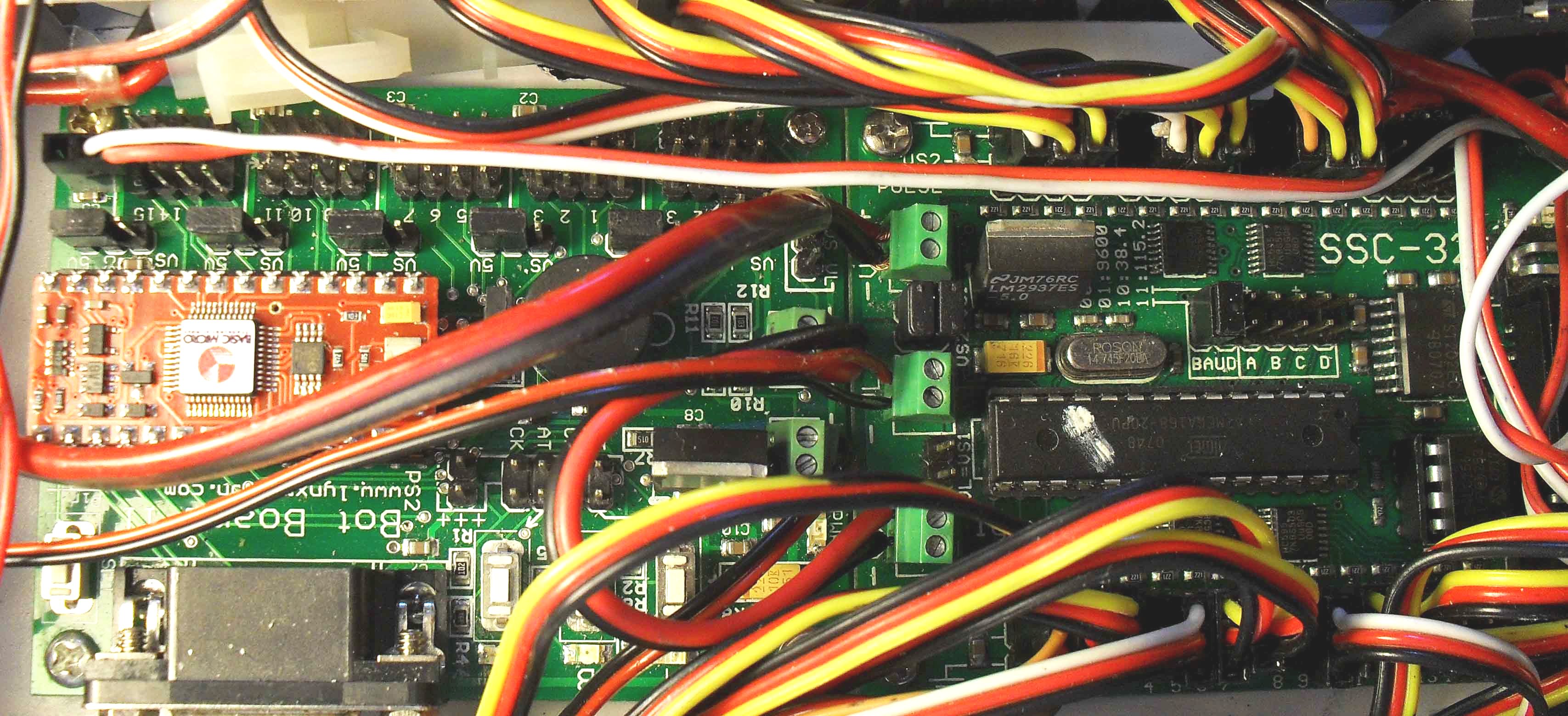

New photo, has here are some files of some sequence that I can try.

robotdude · February 22, 2011, 4:31pm

Hello Geppino, If there is a question here, it’s not coming through. Is there anyone who can help you with the language translation? We need more information and a better description of the problem.

kurte · February 22, 2011, 4:33pm

Here is another stab in the dark.

Has the SSC has been updated with a version of firmware that supports sequences?

From your pictures it also looks like both baud rate jumpers are in place which is for a baud rate of 115200, but your code is outputting at 38400, so either remove the second jumper or change baud rate in the code.

Kurt

geppino · February 22, 2011, 5:05pm

I use this firmware for the ssc32 v-2.03GP.
jumpers for the speed is one 38,400.
