T-Hex 3DOF Leg (Rear leg)

fish-5 · March 16, 2010, 3:29pm

This assembly guide will illustrate how to construct the rear 3DOF legs for the T-Hex. The text and images refer to building the robot’s right leg. You will need to mirror these instructions to construct the robot’s left leg. To complete the T-Hex, you will need two of these legs, a right leg (by following these instructions), and a left leg (by mirroring these instructions.)

Image of the completed leg.
[hr][/hr]

Step 1.

Attach a Tubing Connector Hub to an “L” bracket as shown, using two 2-56 x .250 screws and 2-56 nuts.

2xhttp://www.lynxmotion.com/images/inv/256025ph.GIF 2xhttp://www.lynxmotion.com/images/inv/256zpn.GIF
[hr][/hr]

Step 2.

Attach the other side of the “L” connector bracket to the Multi-Purpose bracket as shown, using two 2-56 x .250 screws and 2-56 nuts.

2xhttp://www.lynxmotion.com/images/inv/256025ph.GIF 2xhttp://www.lynxmotion.com/images/inv/256zpn.GIF
[hr][/hr]

Step 3.

Connect a 1.5" tube to the hub using a 4-40 x .250" screw.

1xhttp://www.lynxmotion.com/images/inv/4250hscs.gif
[hr][/hr]

Step 4.

Attach a long “C” bracket to an offset “C” bracket as shown, using two 2-56 x .250 screws and 2-56 nuts.

2xhttp://www.lynxmotion.com/images/inv/256025ph.GIF 2xhttp://www.lynxmotion.com/images/inv/256zpn.GIF
[hr][/hr]

Step 5.

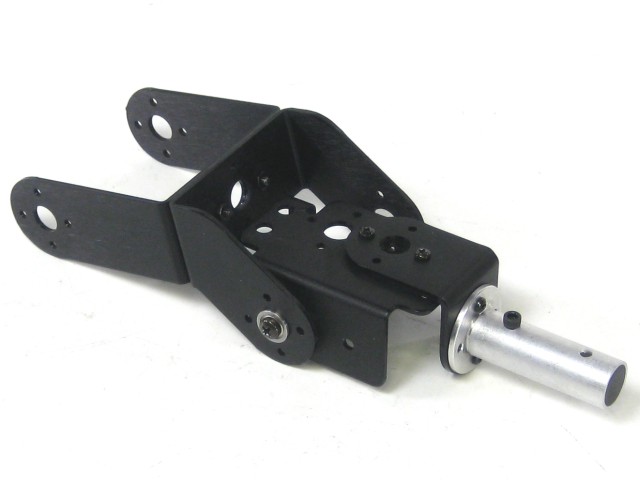

Attach the offset “C” bracket to the Multi-Purpose bracket as shown. See the diagram below for detailed information.

[hr][/hr]

Step 6.

Attach a ball bearing to the Multi-Purpose bracket as shown. See the diagram below for detailed information.

[hr][/hr]

Step 7.

Attach the two multi-purpose brackets as shown, using two 2-56 x .250" screws and 2-56 nuts.

2xhttp://www.lynxmotion.com/images/inv/256025ph.GIF 2xhttp://www.lynxmotion.com/images/inv/256zpn.GIF
[hr][/hr]

Step 8.

Attach the “C” bracket to the Multi-Purpose bracket as shown. See the diagram below for detailed information.

[hr][/hr]

Step 9.

Install the servos as shown, using the included 3mm hardware, and #2 tapping screws. Note, for quick prototype assembly, you can use rivet fasteners (sold separately: NSRF-01).

4xhttp://www.lynxmotion.com/images/inv/2250phts.gif 12xhttp://www.lynxmotion.com/images/inv/srvhdw.gif
[hr][/hr]

Step 10.

Slide a rubber foot over the over the end of the 1.5" tube, and you’re finished!
