I just finished assembly of a A4WD 1. When I hook 9VDC to the BotBoard II, the green pwr LED glows and the A,B,C LEDs flash off and on about once a second, along with a click from the peizo speaker. It does this with all other connections removed. Is this correct operation? I have checked both the polarity and voltage and both are correct. Pressing the reset button momentarily stops the flashing and the clicks.The processor is a BASIC Atom Pro 28 Pin.
I hooked up a serial>USB cable and ran Basic Micro Studio 2.0.0.14 and it reports: ‘BAP 28 found on COM7’. I clicked ‘Program’ and get this error: ‘A basic ATOMPro processor must be connected for automatic detection’. But I don’t think that is part of the problem, at least at the moment. I’m using a Sabrent USB to serial adapter with a FTI chipset. The drivers are loaded in my laptop, a Asus K601 running W7 64bit. The PC seems to find the BotBoard and it stops the flashing and clicking for a second or two.

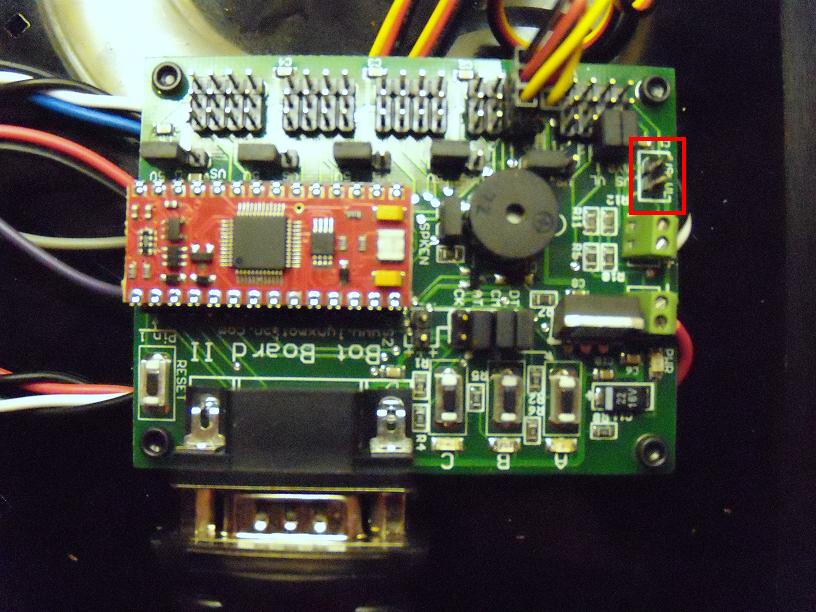

Any ideas? I also included a photo. The only change to the board was removing the servo power VS VL jumper as I’m powering the servos from a 6VDC source.
The clicking and blinking is a result of the test program on the Atom Pro chip. You must program it for your robot. To program the chip click program . Any problems are probably due to the USB to serial cable. Try this page for ideas. viewtopic.php?f=2&t=4702
If it’s a FTDI cable go into the VCP driver and change latency to minimum. Hope this helps…
Thanks, that does help quite a bit. I hadn’t seen where that was the default mode of the BASIC Atom Pro.
I also had my laptop running off batteries, which may have been a communication factor. I also missed the ‘F1’ button for help in the Basic Micro Studio program and that helped me with the setup.
But after a few adjustments, I managed to load the first.bas program and all is well. Next I tried to run the 4WD1TST2.BAS program and the motor controller was unresponsive. A bit of research at the Demension Engineering site and I used their dip switch configurator and was able to perform the motor tests. All OK.
Next is hooking up the Sharp sensors, but I’m learning. Thanks again.
