Seeking long servo horns or alternative for motorized, expanding top hat

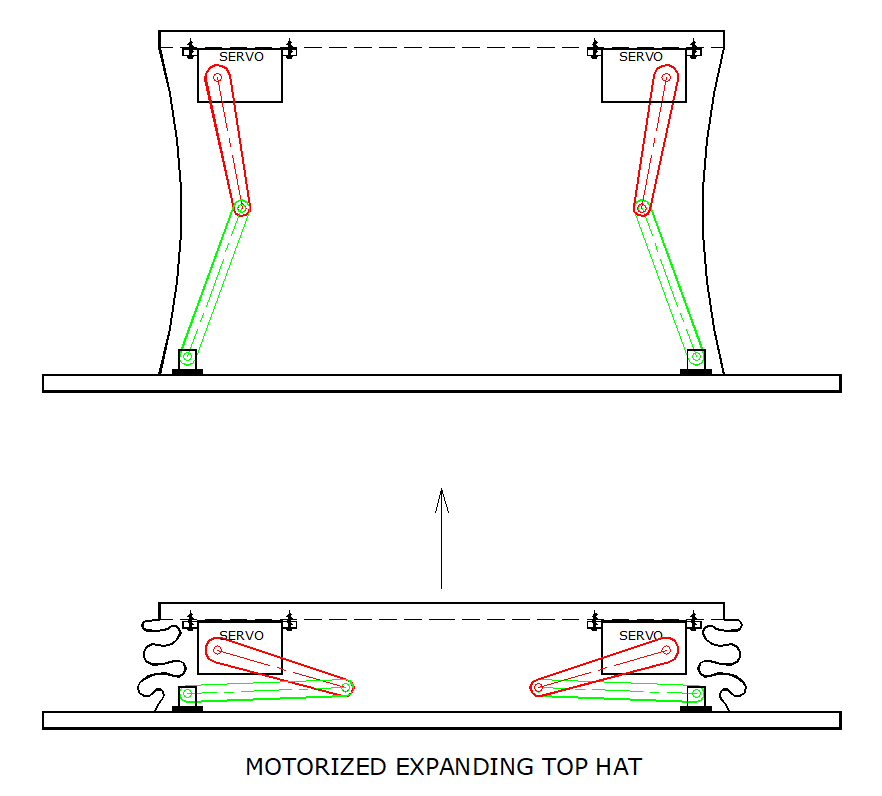

I am trying to design a magician’s top hat, which can expand from a collapsed state, using remote control. Attached is an image, showing the general concept. I will mention that collapsing top hats are known a “Opera hats” because they were popularized when top hats were common formal wear, and users could collapse them to store under their seat.

These types of hat have a rigid brim, and top disc. Then, there is fabric that connect the two. The traditional design has 4 spring-loaded linkages around the perimeter. This is what I want to motorize.

In my picture, the linkages on the servo is 2 3/8" long (center to center). But, I can’t find one this long. Also, I am a little concerned that such a long lever arm is side loading the servo in a way it is not designed to be used. The robot joint systems handle this by attaching a |_| shaped bracket that provides a pivot point on the back of the servo. These won’t work for me, because the way they are designed takes up far too much space. And I need the pivot point to be as close to the permimeter of the hat as possible.

Also, I would love to get a connection to the servo that is not a spline. I am surprised the robotics world has not generated servos that have output shafts with flats on them, or that have shafts going through the entire servo so they can handle a cantilevered load when used with wheels.

I know I can purchase small gear motors with encoders, that have the mechanical features I would like. But, then it gets more complicated to design the control system and the control board starts to get larger, etc. I considered using dumb gear motors and send them to their extremes of travel, where they stall. But, because I need enough speed to open the hat fast, they need to be fairly powerful, and I am concerned they would damage things.

So, I am hoping someone can suggest one of the following,

  1. A servo that has a mechanical connection that is not a spline.
  2. A source for servo horns (that use the typical spline to connect) with at least 2 3/8" between the holes.

Thank you for any replies.

1 Like

Hi @cadcoke5 ,

I haven’t seen such long servo horns.

If these are very specific to your project, maybe you can consider 3D printing it (if they are from plastic) or machining it from metal?

I think you will need to customize your servo horns.

1 Like

Thank you both for your replies.
It looks like my approach will be to use a pre-made servo horn (or disc) and then screw that to a metal rod the length I need.

With RC Servos being so common in the hobby robotics world, I am surprised that I didn’t find any that used a more standard means of connecting to another object. (i.e. a shaft with a flat).

-Joe

1 Like

Hi @cadcoke5 ,

If servo motor would use just a flat shaft, it would be harder to attach something to it right?

Spline on the shaft make it more stable and it can withstand more torque without slipping.

Most gear motors have a round shaft, with a portion of it flattened. This way you can use a connector that has a set screw on the side that will lock it into place Often called a “D” shaft. To make an attachment, you just need to drill a hole the right size, plus drill and tap into the side of whatever it is. It is something you can create yourself. But a spline has to be done by a manufacturer of the servo horns.
