RB-Pol-135 dimensions

Help & Support Robot Parts
1

RB-Pol-135 i need dimensions od, bolt circle, thickiness

2

Hello @gregs,

Welcome to RobotShop community,

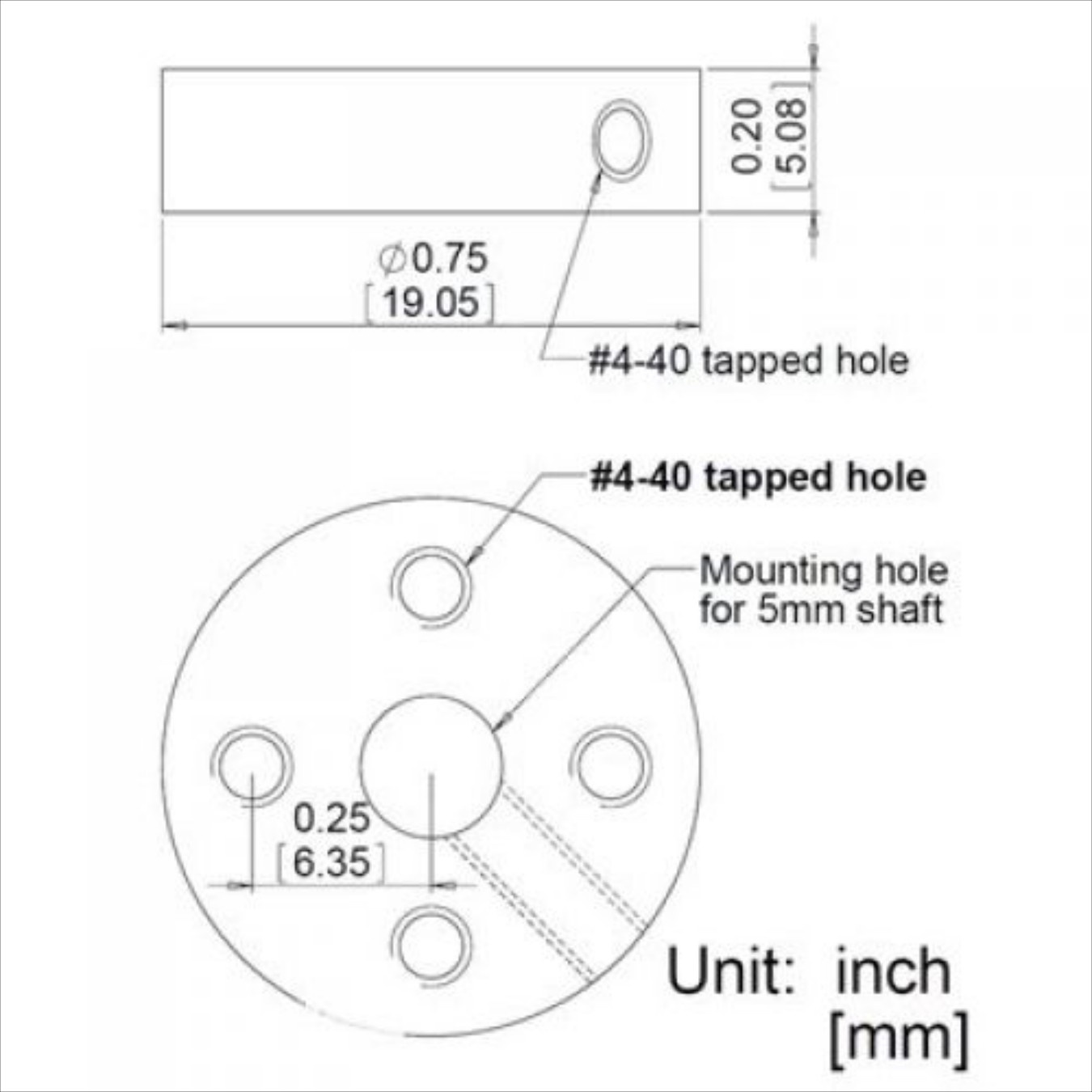

Here are the dimensions:

Regards,

1 Like
3

Hello @Ebram, Hello @gregs,

can you tell me what a ‘#4-40 tapped hole’ is?
Is this an M4 screw?

Greeting Mücke

4

Hello @Muecke,

Welcome to RobotShop community.

4 is the diameter, 40 is the number of threads per inch.

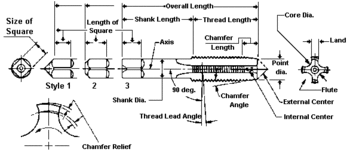

You can find more details about this system(clearance, and thread depth) in the table on this link:

Let us know if you have any further questions.

Sincerely,

1 Like
5

@Ebram: thanks for the quick response. This is a different system than our :pleading_face:
Then I have to drill out the parts and cut a new thread :slight_smile:

1 Like
6

Hello @Muecke,

Thank you for your reply.

Very well, let us know if you needed anything else.

Sincerely,
