I’m using an MD10C motor controller in Sign-Magnitude mode. The two control signals are sent from an Arduino UNO Wifi.
I can get it to work fine with speed and direction control however the speed control in non-linear. What I mean is that the motor speed ramps up quickly in the first quarter (PWM0-60), then it goes flat and the speed barely changes between PWM 60 and PWM120, then it ramps quickly up to full speed in the last section. So the speed profile is a S curve with a bid dead point in the middle.
I’m using an Android app to send a signal (0-255) to the Arduino which then outputs that to the PWM output pin. I’ve used two different apps/comms methods (Wifi MQTT and Bluetooth) and hence different Arduino code and both result in exactly the same motor performance.

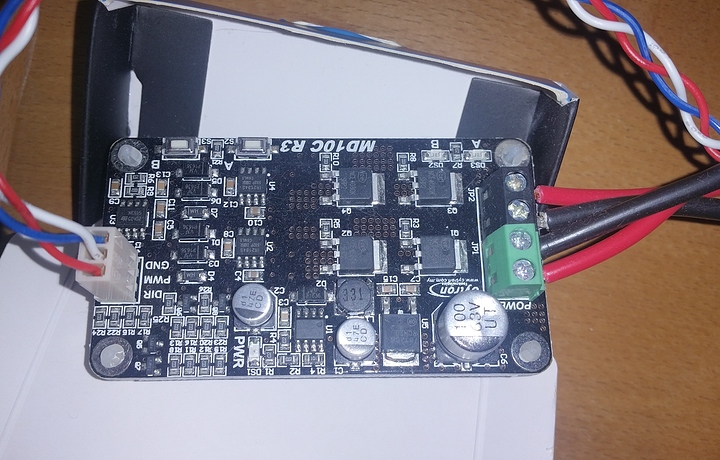

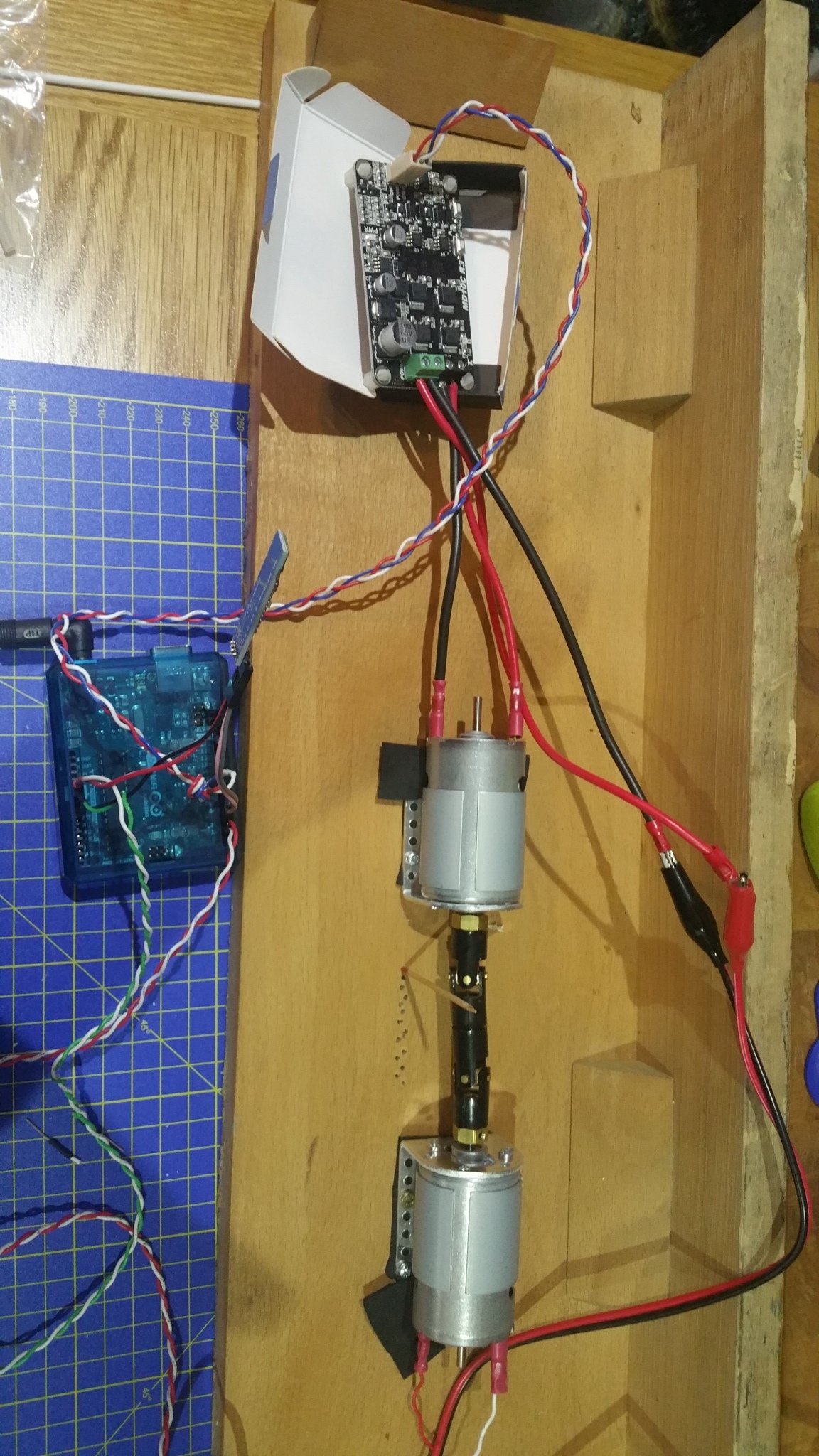

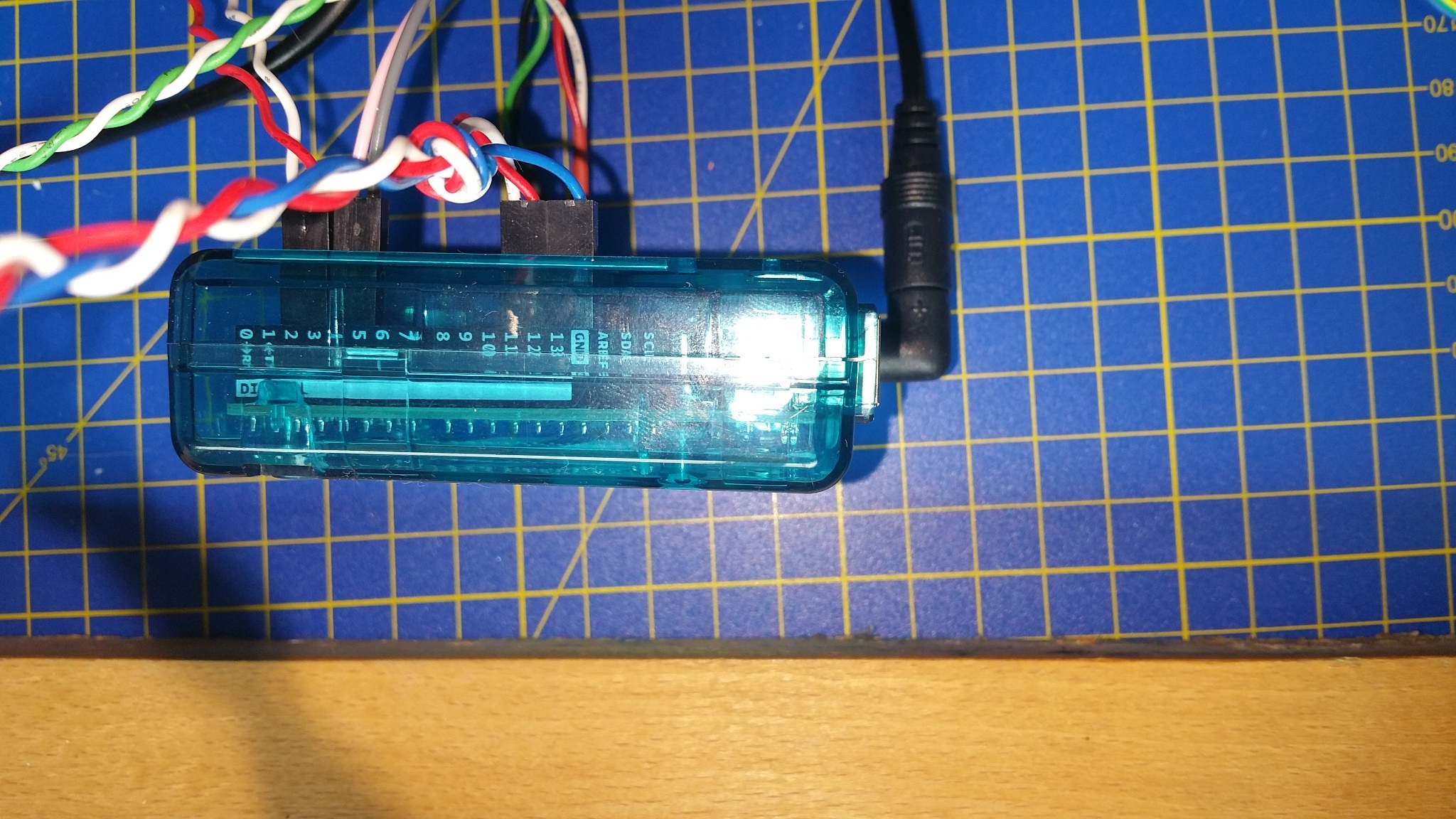

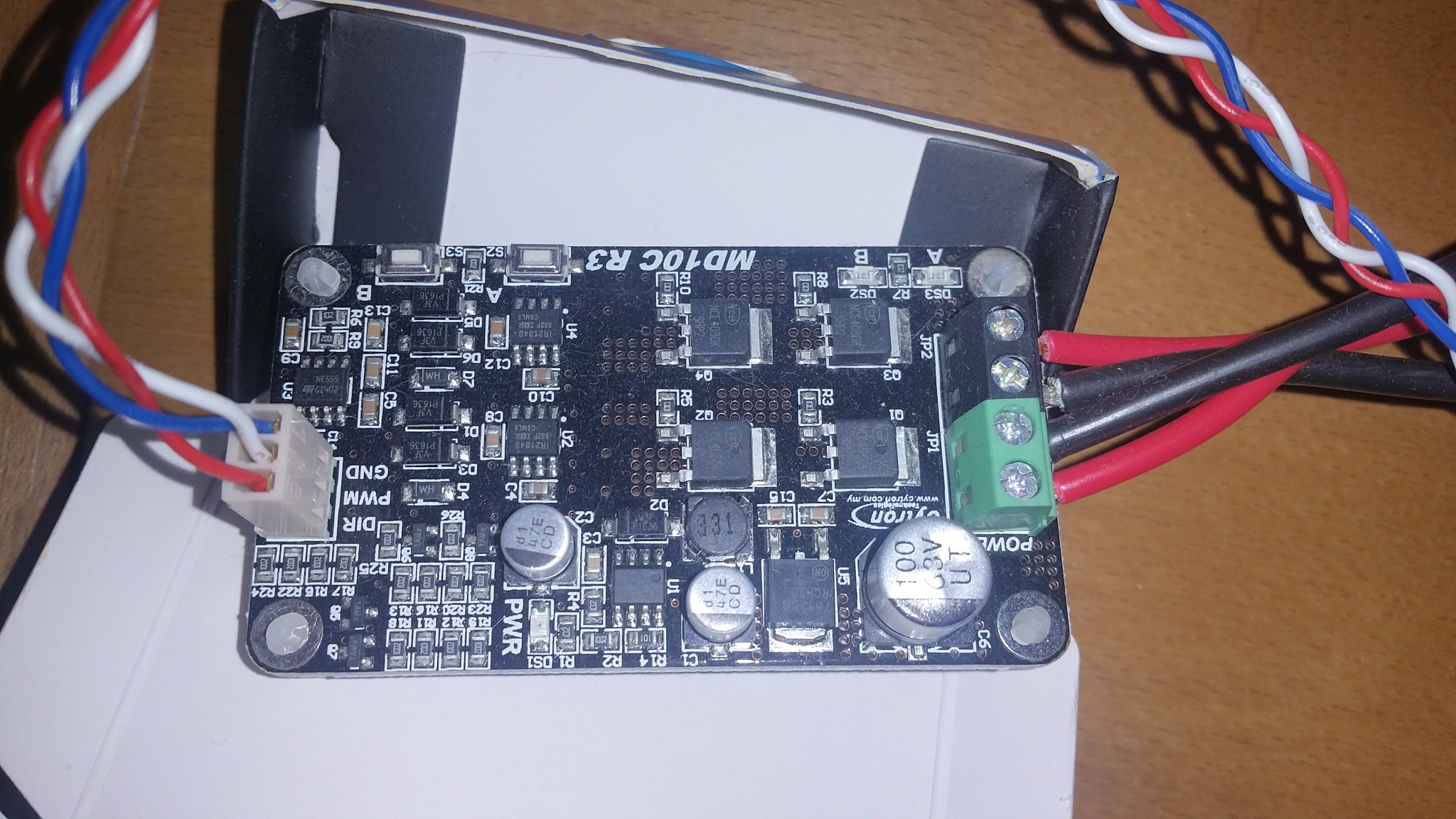

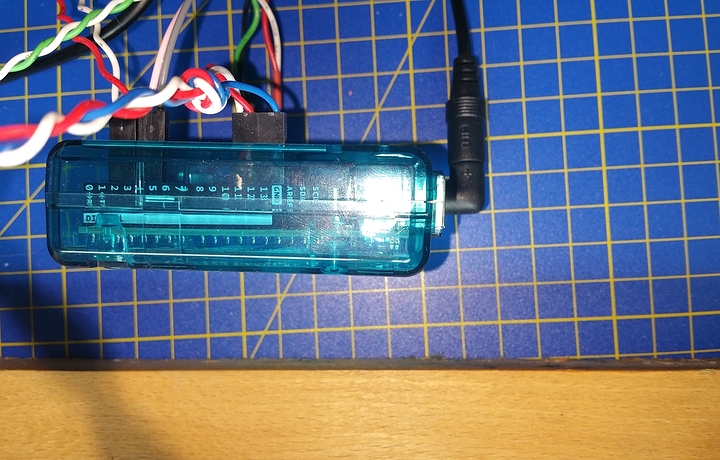

This does seem like a rather unusual situation. It would help greatly if you can provide pictures of your setup, making sure to clearly show all components (MD10C, connections, power, motors, etc.). It would also help if you could provide specs of your power source(s), motor, etc.
You can attach pictures (and other files) to your reply by going into Full editor. See the attached image for details.

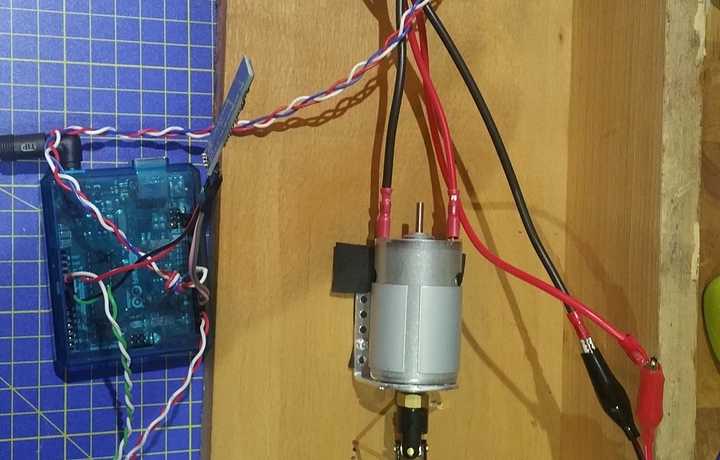

I think I’ve found a potential culprit. I’ve realised that my bench PSU isn’t powerful enough for this motor -as it maxes out at 5A. I’m driving an RS550 motor which would draw much more -so maybe that’s the issue.
