I need help wiring an SDC2106S Motor Controller

Help & Support Robot Parts
1

I have purchased an SDC2106S Motor controller to control one DC motor. I need to have the following functionality Locally (switches and pots) and remotely (RS232);

  1. Start/Stop Motor
  2. Select FWD/REV direction
  3. Change the speed of the motor

If possible I would like to use a single ON-OFF-ON switch to control Start/Stop and Direction.

I was hoping someone might be able to show me how to wire up the switch and pot.

Thanks

1 Like
4

Hi @TSopkow and welcome to our forum!

Most of your questions are answered in a datasheet located here: https://www.robotshop.com/content/ZIP/documentation-sdc2150s.zip

I will copy some of them:

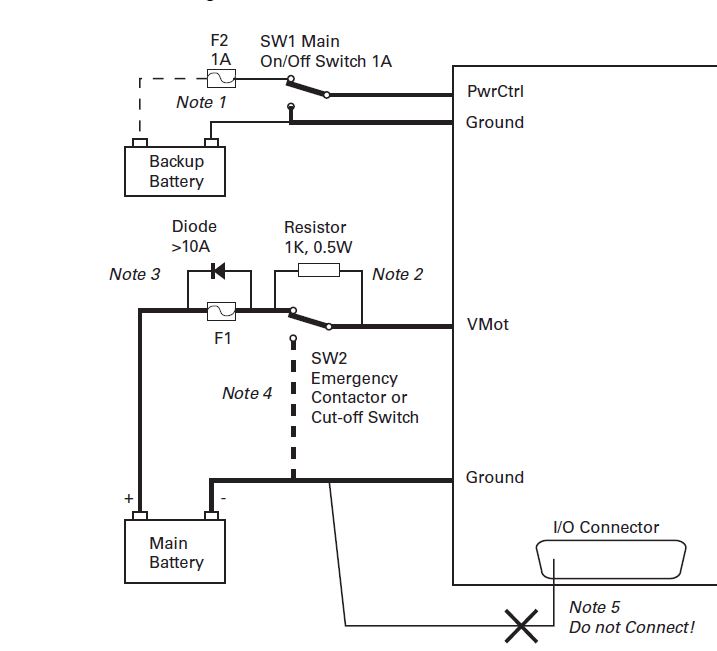

This is how you can connect your power source and On/Off switch:

batteries
batteries717×651 33.4 KB

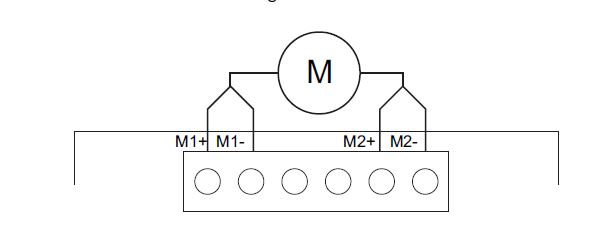

This is how you should connect your motor:
motor

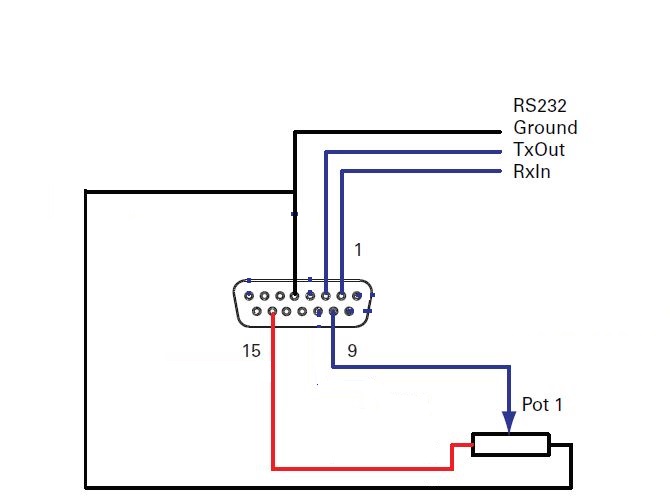

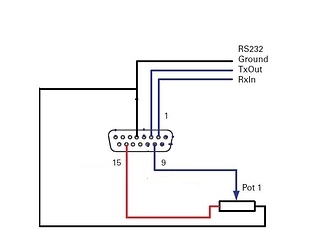

This is where you can connect your RS-232 connection and potentiometer for speed controll:

rs232
rs232670×496 23.4 KB

And now, you have several inputs left to which you can connect your switched and then you can program their function s (direction, etc.).

Feel free to ask anything else.
