How to fix the wire head with the pole block

Help & Support Robots & Kits
1

Hi,

I bought a Lynxmotion AL5D Robotic Arm and tried to assemble it but can not fix the wire head with the pole block on the board, that is the small + and - green block.

Please tell me how to fix them together. Thank you.

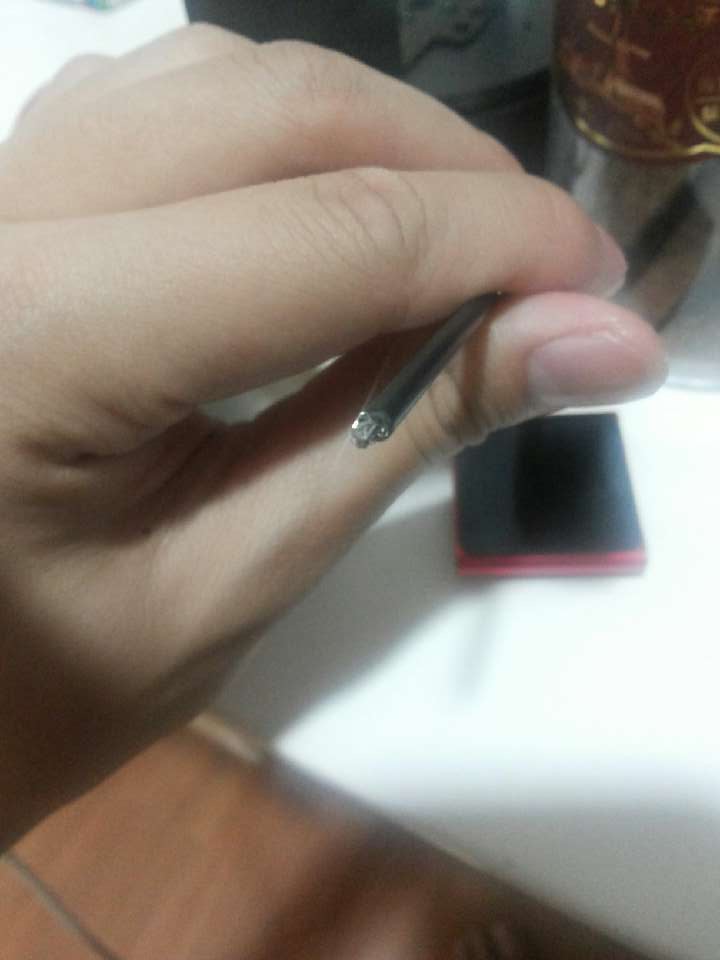

1.jpg720×960 74 KB
2.jpg720×960 39.2 KB

2
  1. Ensure the terminal block is open (the metal piece inside should be all the way at the bottom, an as you turn it, it moves towards the top to “pinch” the wire
  2. If you have a wire stripped, cut off the frayed end of the wire and strip a section of the protective coating off to expose clean, well aligned wires (these would fit smoothly into the terminal blocks).
  3. Alternatively, twist the wires at the end so you simply don’t have stray wires

If you are using a 9V battery and 6V wall adapter, be sure to remove the VL=VS jumper.
