Hole pattern and dimensions for RPLidar A1M8 USB adapter board

Help & Support Robot Parts
1

I am designing a mount for the USB adapter board that comes with the RPLidar A1M8. I’ve been looking all over the internet for the board’s hole dimensions and spacing and haven’t been able to find anything–this includes different suppliers’ product pages, the manufacturer datasheet, YouTube videos, blog posts, etc.

If anyone who owns an A1M8 has the hole patterns or wouldn’t mind taking some measurements and sending them my way, that would really be appreciated.

Thanks

3

Hey there,

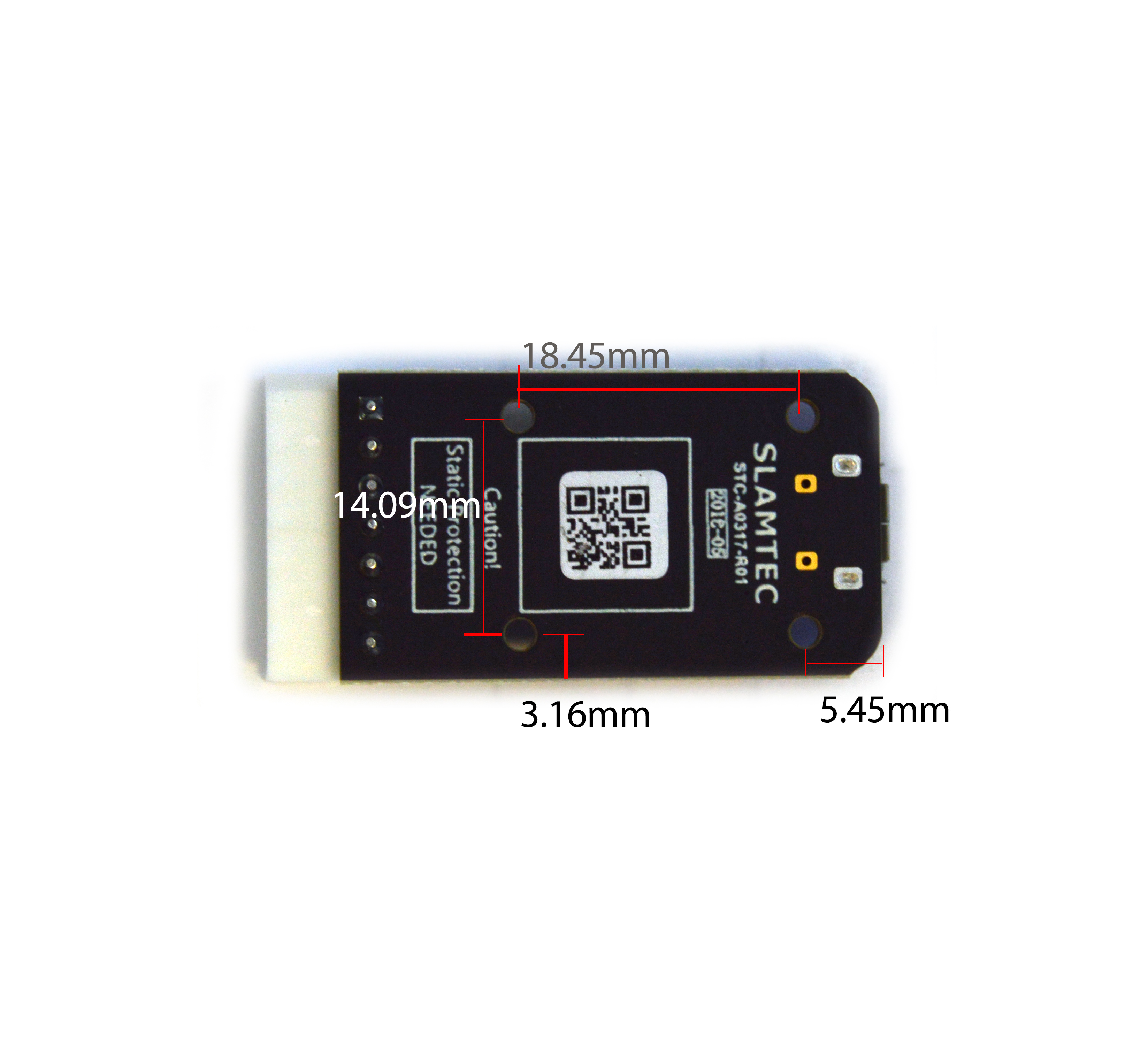

We took one from our stock and measured it with a vernier. The dimensions on the drawing are good, but we recommend that you confirm yourself before starting a mass production. The holes have a diameter of 1.95mm.

Let us know if you need more dimensions.

Cheers

rpk-09-dim
rpk-09-dim3294×3027 1.07 MB

2 Likes
4

Thank you for that information Abourque!
