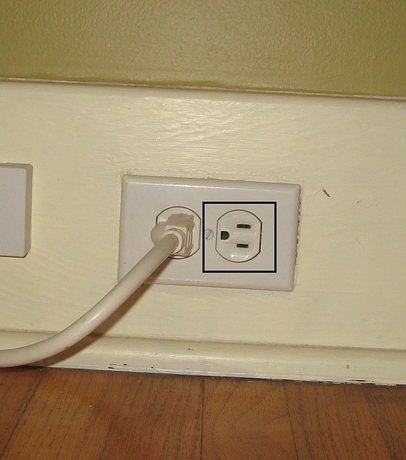

I have been thinking for a long time about how to harness the power of the internet into programming robots. I can imagine a robot here which I give some form of task. Let's say (and this would be relevant) finding a wall socket and plugging itself in. The task of successfully identifying a wall socket, moving the robot to a correct location, and inserting some sort of plug would seem monumental. There is a metric ■■■■ tonne (thanks CTC!) of environmental problems or things which could go wrong. Rather trying to think of all the possibilities, we would do better to "grow" the program out of the environment. Let's start with the first step "Identify a Wall Socket". What sensors can we use to find a wall socket? It might be possible to use a gaussmeter or hall effect meter. A map of the room might help too. But the way I am initially going to try to locate the wall socket is the same way people do, by using vision. Haar Training starts by collecting a large number of "positive" and "negative" images. Positive images are images in which the object exists. Negative images are simply images which the object does not exist. During part of the training the objects in the positive images need to be manually selected by a bounding box. This is one of the most labor intensive parts of training. When I read this, I instantly thought of a fantastic project which involved Michael Jackson's white glove. What if the concept was used to create a library of Haar Classifiers? A site dedicated to train our new robot overlords ! The White Glove Tracking Project In addition I have thought what if a robot was able to distinguish an object from its surroundings. What if it had the capability to query in an attempt to identify that object? For example Imagine the following scenario: For anyone who has had a child this is what happens for a couple of years. The toddler runs around and asks anyone near by "This?" and points to some person, place or thing. Now imagine that same concept used to train a robot, but distributed over the internet so there is not just one or two parents, but thousands or hundreds of thousands. How quick / accurate would the training be? How useful would the data and libraries be? I don't know... but it would be interesting to try this experiment, No? So, you may think. Damn! that's a huge amount of effort just to get my servo to move from A to B. Yeah, it would be - but a one-dimensional Servo positioning problem is not "hard". The thing I'm thinking about is "walking". Human locomotion involves at least 8 joints, hundreds of muscles, inner ear, the sense of touch, and the "where is my foot?" sense. I forgot what this is called, but the name is buried in a RadioLab episode. Imagine sitting down and trying to figure out all of those commands - Like "I am going to move my knee 3 degrees now", then "I am going to flex my butt slightly more" ... blah blah blah. Nope, no one does that (although there apparently is a disease you can get where you have to do this)... What happens, is when your a little shmoo, you start kicking and crawling, and grabbing at stuff.... then you balance yourself ... then BAM ... you fall on the coffee table. FAIL! Most robot walkers really suck ! They have giant feet and small legs. You could tear off a leg and turn the power off and they would still be standing (try that on a person). So, this is an attempt to make a better walker... it will still probably suck, but I won't know until I try it. My design will have very small feet (maybe just rubber tipped dowels) and 4 - 6 Servos (cause that is how many I have), and accelerometer and a couple of touch sensors. Here is my first rough sketch.
References I think there is an "Arty" component of Genetic Programming. The hard part is not turning the crank as with simple or defined algorithms. The hard part is defining the problem and encapsulating the success into something measurable. I would be interested in assimilating the code into MyRobotLab framework. So I went looking around I found several implementations of Genetic Programming in Java. The experiments will run in stages. The first stage is to set some super simple experiments up with MyRobotLab, since I just got UDP video streaming to work. The video should be helpful in future for distributed Haar Training as mentioned previously. More to come.... 2010.12.14 http://frogleg.myrobotlab.org/ - starting to set up the experiment. I'd be curious if anyone gets to the video. If you do please let me know with a screenshot & lag time (I put a clock on the video). The filters are functional if you want to mess around. Don't know if I left out anything which blows stuff up... we'll see. Link to the Applet is at the bottom. Right now it is using UDP exclusively, this was an idea in order to make the video work for longer than 10 seconds. But I may need to go back and send only video on UDP and all other control messages on TCP. For the record - this is what it looks like on my box.
You should see the clock update, and you should be able to change the OpenCV filters. Lot's of shoulds. 2010.12.14.Later.... Something is goofy ... this was working (the client/server part) on different machines but now its not so ... don't waste time... I'll try to figure it out. 2010.12.18 As I mentioned before the challenge might not be the "programming" or framework of the system but defining the problem: Define the Problem The program does very well in generating a function to match the current (default) curve. I through in a large sharp spike to see what would happen. After 500 iterations it failed to match the spike. I'm not really surprised as I believe it was constructed with the idea of following more smooth curves. And the goal which I am interested in is a smooth curve. The reason I did a spike is that was the easiest data I could tweak artificially.
2010.12.19 - Easy Filter - Frog Hunting at Night I found the appropriate "green" LED and applied the following filters. Have not mounted LED to FrogLeg yet. As Gareth had mentioned I could possibly be doing this with a wii remote, but I have not purchased the PC bluetooth dongle. Getting a robust tracking was pretty easy with the lights off.
Now, I just need to save the coordinate positions off, scale them < 1, and put them in the applet... Captured Froggy - is really a test of the motion capture. I used my hand to generate the motion to test the basic process. Also to test the export format of the data being captured was correct and in the range of data expected by the GP Applet. Solving For Froggy - the red line represents the path of the LED with my hand. It came out relatively well. There was a bit of loop and other garbage at the end which I trimmed off. So it did not take long (131 iterations) for the GP Applet to solve for a nice curve - certainly nicer than my jiggly hand movements (too much coffee!) What the graph and the formula represent is a simple X Y plot. int X; int Y; Next Steps: Trying to assimilate Frog GP into MyRobotLab... you will be assimilated... Riddipp... Riddipp... 5 Legged Horse
The Simplest Case Here the input data was a single point (0.5, 0.5).
2010.12.20 - GP Code Assimilated Some of this stuff is now starting to congeal. First in order to generate a program you need a pool of possible nodes. The other work which will need to occur is to get the feedback of the LED position to interact with the Fitness Function / evaluation. Pool Of Possible Nodes - to create a Genetic Program
Possible Solution This possible solution would get evaluated with the feedback for the fitness function coming from the LED position
2010.12.26 - Feedback enabled It doesn’t look like the camera capture is following the leg in the video, but that has to do with frames dropping in the screen capture program. Here is the result after 43 generations. It follows the grandfather program (from generation 36) pretty closely. I can see mutants appear occasionally. I think they "look better" than grandfather#36. There is some "adjusting" on fitness values which now may not be appropriate. In addition the programs trees have grown to about 150 nodes, with ~120 calls to the servo in evaluating 1 program. The calls are not being processed because the ~120 calls to the servo make no relevant changes. They basically overrun the servo. I was thinking in modifying the program tree building functions so that there could be only 1 call to each servo (knee & hip). The actual values can be modified 120+ times, but it will only be 1 call to each servo. Telefox and Rik mentioned the amount of "useless" material in DNA, but I think there is plenty diversity for the values of the servos versus the actual call to the servos. For example moveKnee( (x + 10) - 10) would still be possible or moveHip ((x + 0) - 1) + 1) , moveHip(x / x * x ) ... etc So, there is plenty of room to create garbage. 2010.12.27 - A few goofy things I think its still a good routine - the part I miss calculated was the fact that even though the program commands the servos to move the delay between when they are actually moving and when the servos get the command is enough time to snap 2 stable pictures. I will add a delay before checking the video stream, to at least get the servos "moving" 2010.12.28 - Found goofy thing behind keyboard There was a nagging feeling I had previously regarding setting the servos to an initial state. It turned out the nagging feeling was correct. I stepped through the code, when a "Best" was selected which had a single knee move. That would mean the program was completely dependent on some previous individual setting the hip ! Ooops! 2010.12.29 - Summary Genetic Programming is very appealing because of its organic design. It is important with genetic programming the evaluation of each individual program happens very quickly, otherwise the time needed to create something useful becomes way too long. Genetic programs working in simulations can work considerably faster, but at a possible cost of not modeling the real environment satisfactorily. Also, creating or interfacing with a simulator may not be worth the effort in some situations. Telefox, shared some links on a project which has done genetic programming/simulator integration. The Starfish robot uses a simulator to run through possible walking modes - here is an example. The following images are the results of letting the program and feedback system process for 1/2 a day. Not spectacular, but not bad either. I now would like to try something with accelerometer feedback. The feedback system of the accelerometer should be considerably faster than the video system. Balancing should be challenging. The amount of time balanced should be part of the fitness program. I've been kicking around a few ideas but nothing concrete, and now i want to spend some time on WiiDar (wii LIDAR) since Santa gave me a blue-tooth dongle. I would welcome feedback, or anyone wanting to experiment with a similar setup.
Series of screenshots from 30 generations of the GP trying to find a program
Genetic Programming - a Slight Deviation
Try again... shaky legs, wobble, take first step BAM FAIL!
Well maybe we do a form of genetic learning taking the best of partially successful attempts and glom them together in our brain to be skilled walkers.
This is what I've seen so far.
So here is my first stab at that definition.
Find the Function that will send 2 Servos the correct data sequence to move the Frogs Foot in a predefined smooth "Walking Path"
The error will be calculated from a predetermined path which was manually created. The comparison if done visually will be done frame by frame. Within each frame the control path will be compared to the actual path and the proximity between will be considered the "fitness".
There needs to be 2 output variables - So I guess that would be expressed as TWO functions, one for each servo
If anyone knows how to create a 10 point data set and make some funky (sinusoidal?) waves I would appreciate the input. Hmm... wonder what a circle would produce.
Or Theo's data set - Hey Rik do you have plot values of your legs we could test as input values of the fitness curve !?!?
At the moment this would equate to a linear actuator Y and time X. As time proceeds a simple formula could be used to move the linear actuator up and down to follow the curve.
The Arduino'ish code snippet might begin to look like this:
for (X = 0; X < paceMax; ++X)
{
Y = "the generated formula" (X)
analogWrite(legPin, Y);
delay(delayAmount);
}
So I think the next steps would be to actually mount the LED to froggy's foot. There is no linear actuator but 2 servos (Polar coordinates hopefully avoided by the whole GP thing). Another task would be to incorporate the GP into MyRobotLab... always more steps for froggy foot.... hop hop hop...
Here is an example of GP finding a solution but not necessarily the optimal one. A 137 node formula was used to derive the graph Y = 0.5
The Genetic Program of fitness 1.0 (perfect) was created in the first generation.
As you can see the program evaluated to Y = (X - X) + X, which is Y = X .... Yay !
This will be the pool of my proposed nodes for the first simple tests. It is what Gerber's Applet had with the addition of (Move Servo #1 (value) & Move Servo #2 (value)).
I came to the realization that the fitness factor is evaluating the points in exact order. But if the generated program created a movement which "matched" exactly but was rotated. For example, if the generated program created a movement where step 1 was at point 2, and step 2 was at point 3, step 4 was at point 1 - it would throw the solution out, even though as a cyclical movement it is perfect. Since there are 4 possible rotations, does this mean I'm throwing out 3/4 of the possible solutions?
Somethins Screwy
Something is just plain wrong in the fitness evaluation - I believe I have goofed something up - I hand calculated some of the "Best of Breed" Programs and can see ones being rejected that are better values. Humbug, time to debug.
I thought I was doing this
Unfortunately, I needed to slow the video capture / genetic processing loop down to 1 second per iteration. This was necessary to capture accurate positions of the LED. There are 4 points of evaluation in each Individual fitness test. It is also necessary to set an initial state, for each individual. This comes to 5 seconds per each evaluation. So if we would like to do 999 generations at 100 individuals each with 5 seconds per evaluation, the time involved would be nearly 6 days ! I don't have the patience. Although it was fun to walk away from the computer, and have it busily "crunching" possible solutions. But, the servo noise was quite annoying.
who's optimal solution was the yellow trapezoid. The red letters & red path represent the
current best. The grey text and grey path represent the current individual program
being evaluated.
I have seen several great examples of Face Recognition / Face Tracking projects
All of the projects I have seen are using OpenCV face detect function. OpenCV implements its face detection with the results of a previoius Haar Training
Before starting distributed Haar Training I wanted to see how "capable" genetic programming is, since its outcome could influence the type of training we would be doing.
My initial thoughts of Genetic Algorithms / Programming without really knowing much about it went along these lines :
Fitness
The base conceptual function would be for some time value Tx there is a servo #0 value S0 and servo #1 value S1 such that function S0(Tx) and function S1(Tx) = Correct Frog Foot Position
Here are the utilities / resources I have browsed :
http://alphard.ethz.ch/gerber/approx/technical.htm Very well done "working" example of genetic programming - with an ouput of a function. The code is old - cleaned up a few small errors for Java 1.5/1.6 - Much of the Applet functions are deprecated. The code was neatly constructed with good separation between the GUI and the GP.
Fitness cases (red line). It's accessible through Settings->Fitness Cases
Here is a square wave after over 500 iterations, again it did poorly which I would expect.
I have assimilated the code from the GP applet into a MyRobotLab Service. Many thanks to Hansueli Gerber for his implementation of John R. Koza algorithm.
Now I am working on the definitions of functions within the GP - so that they might be applicable for moving Servos.
Today, I ran the frogleg feedback. Need to work with the Tree design some more. There is not much point building a program full of multiple leg/knee servo moves. There should probably only be 1 move per each servo per program. If you look at the diagram above, Servo#1 or Servo #2 can be moved multiple/many times per each program, however, when the program is executed/evaluated - all moves are basically done at once. At the end of the program evaluation/execution, the location of the LED is found and a fitness value is accumulated. For every input value, a program fitness value is evaluated. Currently 4 sequential input values are fed into the program, and 4 LED positions are gathered.
Fitness Too Constrained
In Synch But Out of Whack
I have a locking mechanism in the system which will wait until the video frames can send two identical positioned captures. This is so an accurate reading can be taken of the LED's position.
I seemed to be getting erroneous results. A cycle through a generation was producing programs and I could see when "The Best" was selected. But when this "best individual" program was executed by itself, its result was not the same when it was peviously evaluated.
Ting’le!
Darn, I am at work right now. But I want to soak all of this in. Will have to wait.
Darn paying day jobs getting in the way of Sentient Skynets!
Here is the assembly guide
Here is the assembly guide for the Lynxmotion hexapod foot sensor: http://www.lynxmotion.com/images/html/build127.htm
Thanks Ro-Bot-X
for that info… However, I’m going to go the more Macgyver road at first and make a ■■■■■■ sensor out of anti-static foam. Or maybe just a foil switch. This is one project where I’m excited about kludging the pieces together. The servos I have don’t even match. But that is the Point !!! Because my own legs are not the same length, yet I can walk ! I mean at birth I could not go… geeze O’ Creator, my inner ear really is not the best - can you replace that ? Instead, I stumble around like a miniature drunken sailor - until at one point Eureka ! I can walk !
Or that’s the theory
Oooh Good
You are my Master Sensei Rik. I had meant to ask more questions when Darwin was alive. To start with, what is your “fitness function” if any? And what other mysteries did you uncover in your process?
I loved that "White Glove Tracking Project"
But just to clear up: it did not use the HAAR training. The project brute forced its way into recognizing the glove. Volunteers pointed out the glove in each and every single frame of that video clip. That’s the power on Internet for you.
Fitness function - one was not enough
[In my dreams] I had different fitness functions. Look at them as the different levels in an RPG.
first level: survive the syntax check by the linux command line compiler for picaxe
second level: judge the code size (40% of picaxe memory is better than larger or smaller)
third level: make my robot’s arm do something, anything at all (this was judged by contact switches judging the movement of the arms)
fourth level: score points by hitting the switches (with a secret bonus/malus algorithm for hitting them in a special order)
fifth level: points awarded by human online judges (LMR’s Robo-Idols)
I never got to make that fifth level, so imagine my excitement about your initiative here!
Why five or more levels?
Nobody would like to experiment (play!) with my Darwinbot if nothing in the video would move. A lot of uninteresting code would be generated by the artificial evolution. So all the illegal syntax had to be culled before it ever made it to the video auditions. The same is true for code that is insanely large. Also, very small code would be less likely to present “interesting behaviour” than reasonably sized code.
And also, using my way of encoding programs into genes (verbatim picaxe basic in ascii), larger genes would be more likely to harbour interesting-but-dormant snippets. Imagine a snippet “;ertxd (‘PENI;’, cr, lf)”. In itself totally inert. Now “randomly” replace the semicolons with s’s. Get the picture? Pervert!
I figured that “dormant DNA” is in fact vital for the process of evolution as a whole. Modern biologists seem to think so anyway.
No wait - there’s more
By gradually raising the bar for “fitness”, I made it easier for evolution to go from zero to interesting code. Our evolution did not jump from replicating molecules to Homo Sapiens in one step either. Mother Nature allowed us to be all kinds of things along the way. Compared to my experiment, I think Nature allows for a far, far, far more gradual stepping.
That’s why I decided it was so important to have fitness tests that awarded points, rather than “approve/disapprove”. A boolean fitness test cannot facilitate development beyond “yeah, OK, that will do”. A points system can say of a creature “oh wow, that’s way better than its parents’ generation!” and still recognize further improvement.
Sorry If I wasn’t clear
I was suggesting a way to create HAAR training data, through the distributed power of the internet. The OpenCV data for face detection probably was created by MIT undergrads… or some other slaves… manually
