I plan to replace my MPU6050 MultiWii Flight Controller with the
Quadrino Nano when it becomes available. I was wondering
which ESC the D3, D9, D10 or D11 powers the Quadrino Nano?
I believe the cable is wired so that only One ESC powers the
Quadrino Nano.
Thanks Regor
The Quadrino Nano is based on a ATmega2560 instead of a ATmega328 on the board you have. This will change the motor pins used to connect the motors.
[table][tr][td][size=2]ATmega328[/size][/td][td][size=2]ATmega2560
[/size][/td][/tr][tr][td][size=2]D3[/size][/td][td][size=2]D2[/size][/td][/tr][tr][td][size=2]D10[/size][/td][td][size=2]D5[/size][/td][/tr][tr][td][size=2]D11[/size][/td][td][size=2]D6[/size][/td][/tr][tr][td][size=2]D9[/size][/td][td][size=2]D3[/size][/td][/tr][/table]
Here are the connection drawings available on the MultiWii website:
[table][tr][td][size=2]ATmega328[/size][/td][td][size=2]ATmega2560[/size] [/td][/tr][tr][td]http://www.multiwii.com/wp-content/uploads/2011/01/QUADX_328-291x300.jpg [/td][td]http://www.multiwii.com/wp-content/uploads/2011/01/quadx_mega-300x295.jpg [/td][/tr][/table]
That’s for the correct pinout and here is the actual connection to the Lynxmotion Quadrino Nano with powering on D3.

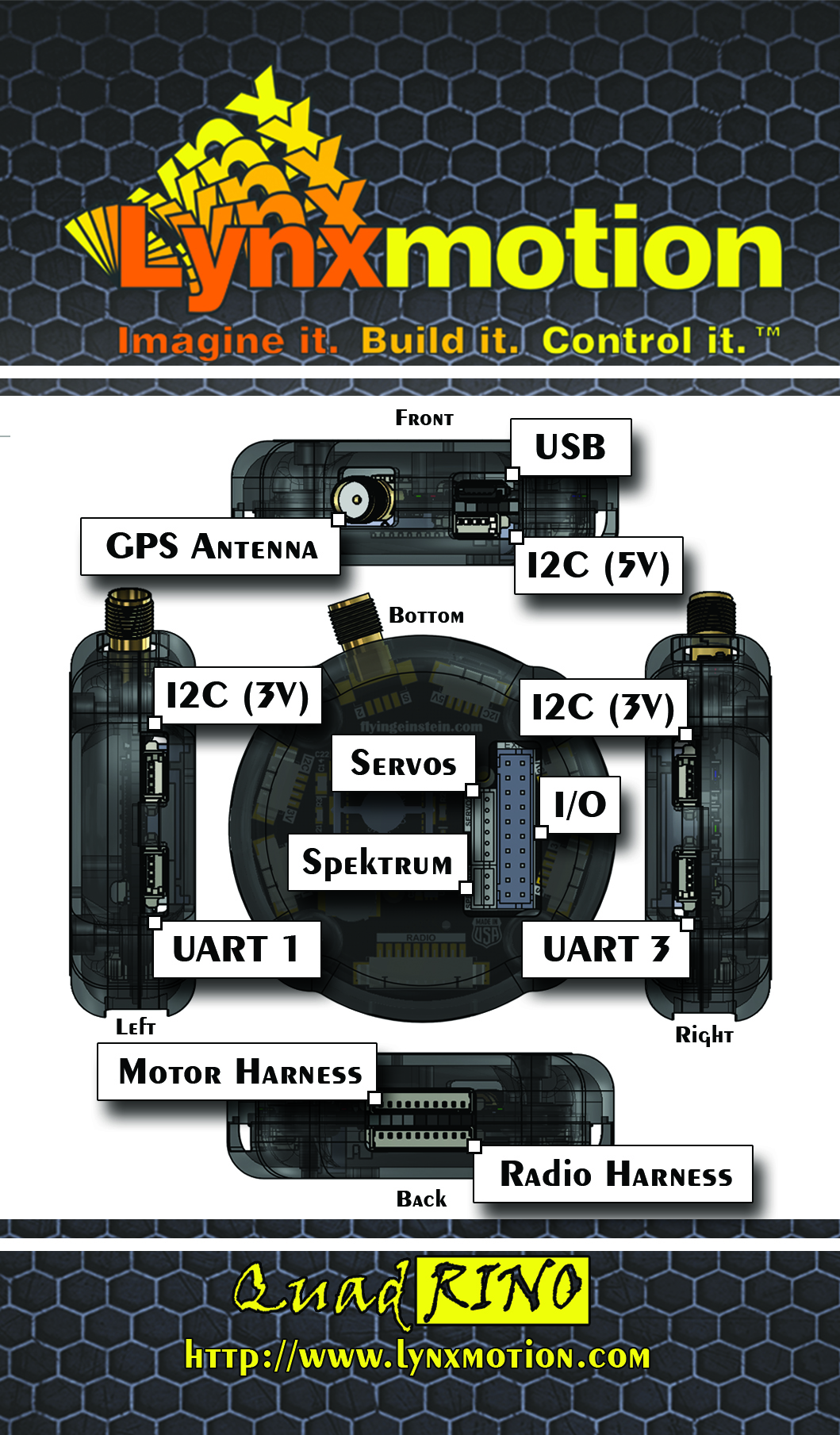

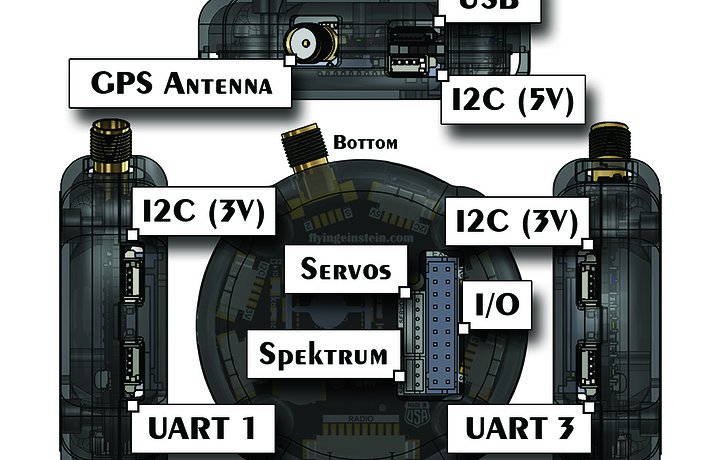

Of course, this quick connection card is included in the package…
