Componet of Xbee-4Nano V1.0

Help & Support Robot Parts
1

Hi everyone i have buy Xbee-4Nano V1.0.

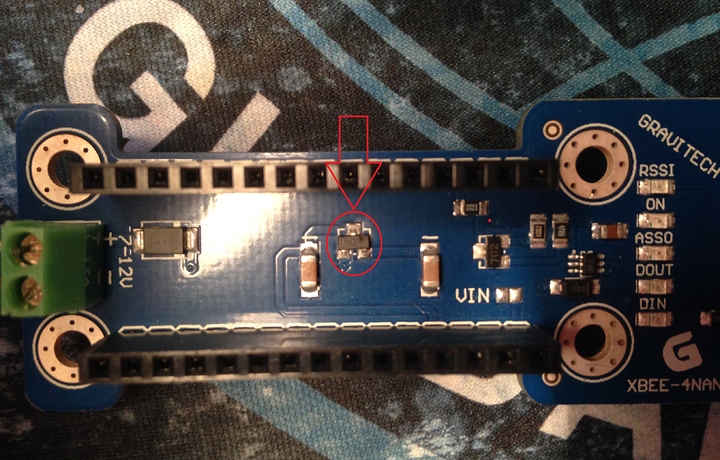

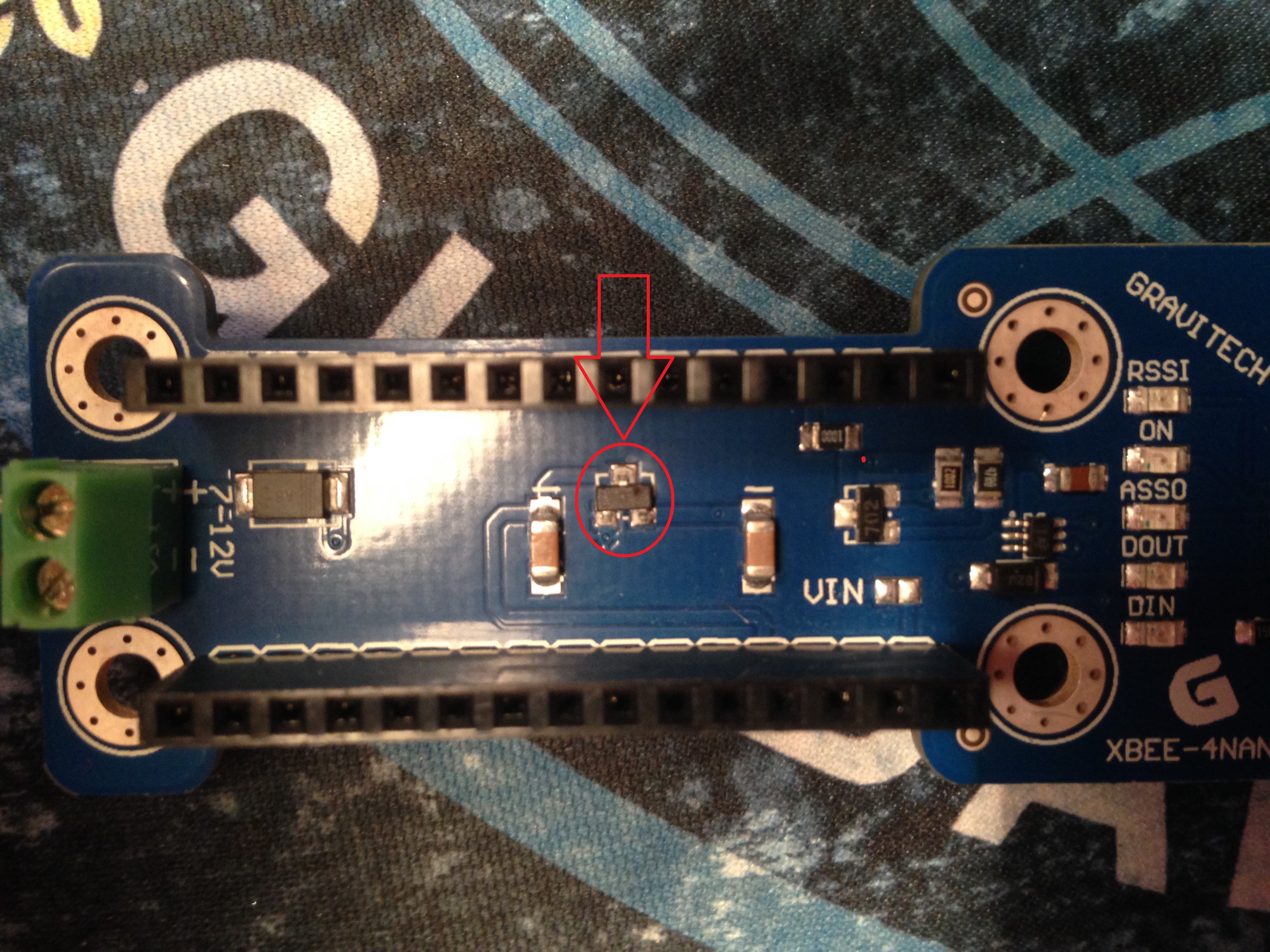

I’m interested the name of the component that is on the card. I am attaching the photo of the part that interests me.

Thanks.

IMG_3030.JPG3264×2448 1.98 MB

2

It is probably the 3.3v voltage regulator. From their schematic it looks like it is something like an MCP1700

3

Name on this component…?

IMG_3030.JPG3264×2448 1.28 MB

4

Again look at the schematic that is attached to the product page:
robotshop.com/media/files/pd … -4nano.pdf
For your first part I guessed it was the Voltage regulator, could also have been transistor.

For this one I am guessing it is one of the Diodes (D1 or D9) and from the location guessing D9, which shows on schematic PMEG3050BEP which if you do a query at places like digikey, you find the part:
digikey.com/product-detail/e … ND/2531806

5

Thanks for all informations…
