Hello,
I try to connecting the PS2 controller with AL5B using coding below, I follow the instruction at:
lynxmotion.com/images/html/build091.htm
but the robot not moving like i miss something with the connection.
pls anyone can help me with this.

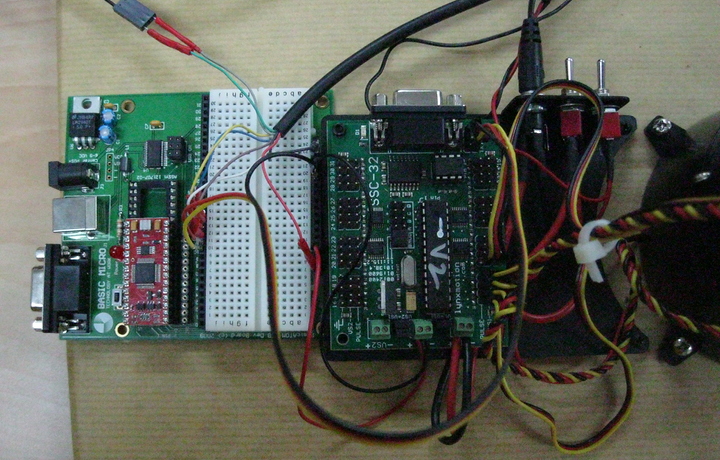

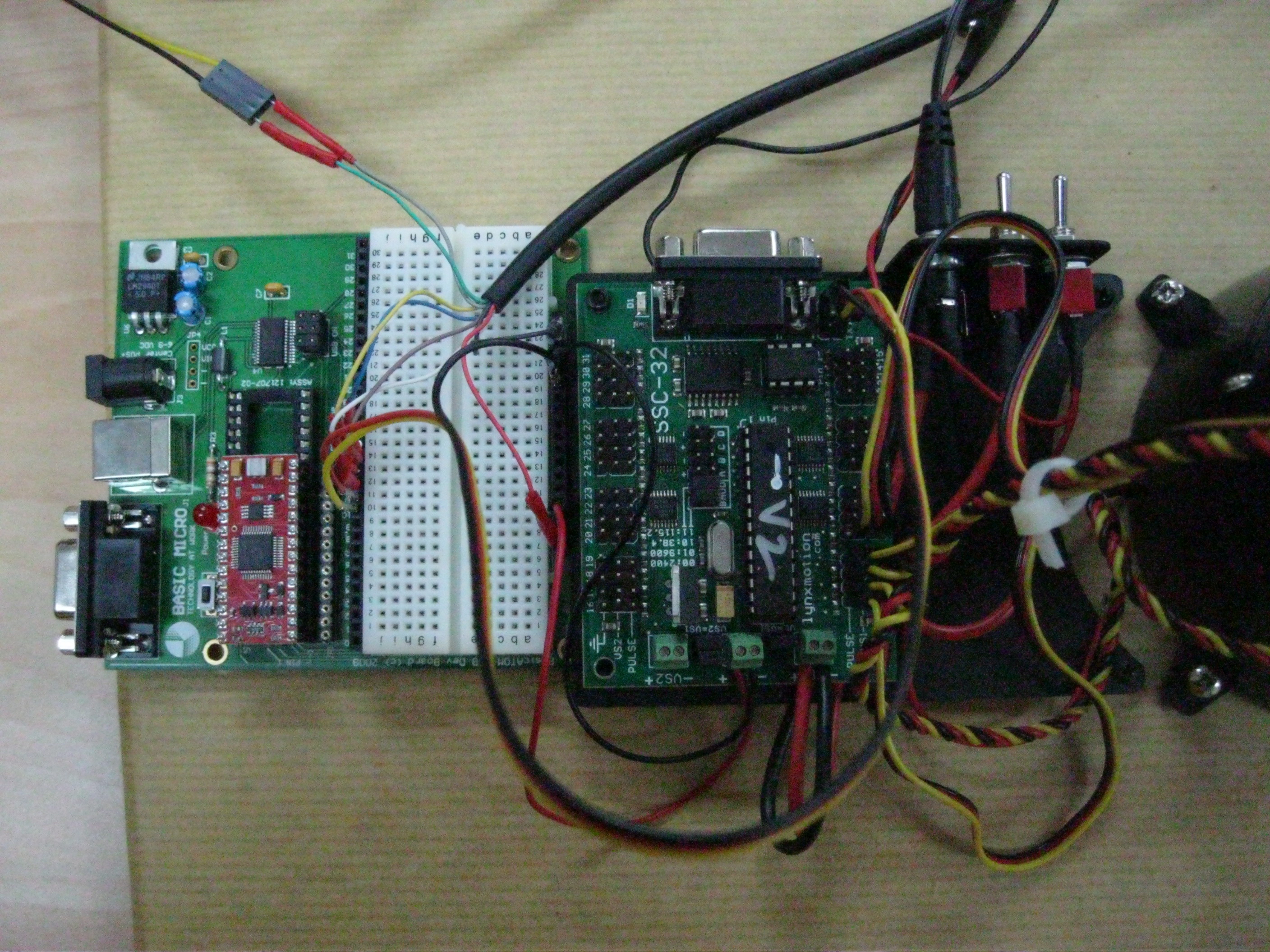

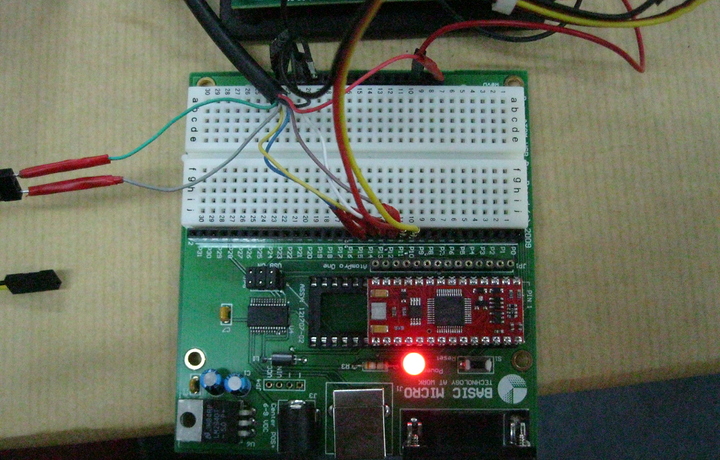

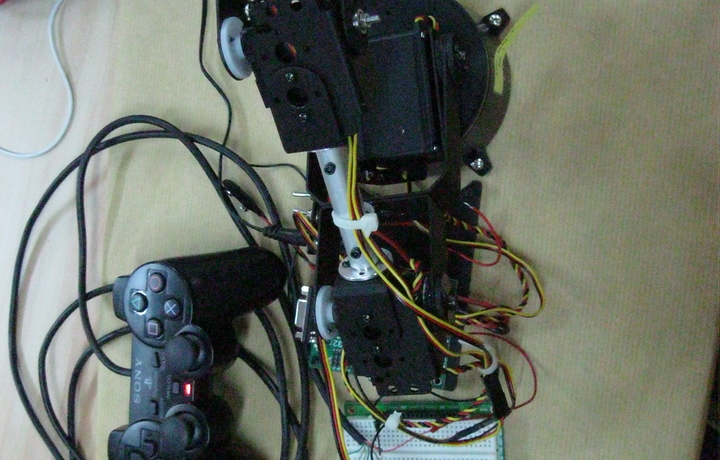

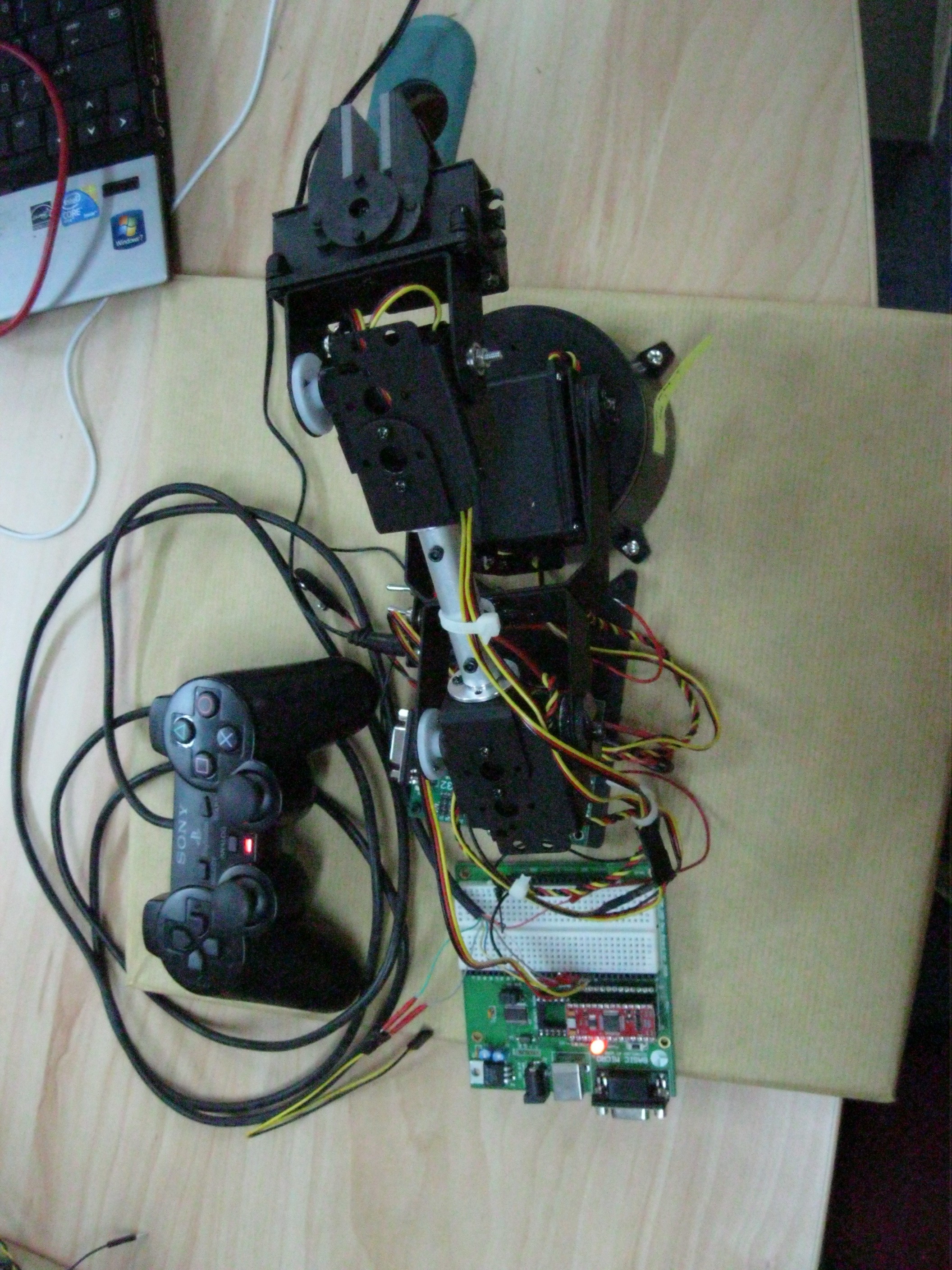

I take some picture for the connection that i make below:
sorry for my english…
;====================================================================
;[SETUP]
;disable(0)/enable(1) the FSR Gripper
EnableFSR con 0
USE_SSC32 con 1
;Select Arm type
;NOTE: Enable only one arm!
;AL5A con 1
AL5B con 1
;AL5C con 1
;AL5D con 1
;--------------------------------------------------------------------
;[TABLES]
GetACos bytetable 255,253,252,251,250,248,247,246,244,243,242,241,239,238,237,235,234,233,232,230,229,228,226,|
225,224,223,221,220,219,217,216,215,213,212,211,209,208,207,206,204,203,201,200,199,197,196,|
195,193,192,191,189,188,186,185,184,182,181,179,178,177,175,174,172,171,169,168,166,165,163,|
162,160,159,157,156,154,153,151,149,148,146,145,143,141,140,138,136,135,133,131,129,128,126,|
124,122,120,118,116,115,113,111,109,106,104,102,100,98,96,93,91,89,86,83,81,78,75,73,70,66,63,|
60,56,52,48,44,38,33,26,15,0
;--------------------------------------------------------------------
;[CONSTANTS]
c2DEC con 100
c4DEC con 10000
TRUE con 1
FALSE con 0
BUTTON_DOWN con 0
BUTTON_UP con 1
;calibrate steps per degree.
stepsperdegree1 con 1666 ; steps per degree in 10ths...
;=========================================================================
;=========================================================================
;=========================================================================
#ifdef USE_SSC32
;[BB2 PIN NUMBERS]
GripperFSRPin con P16 ;Force Sensing Resistor for the Gripper
;PS2 Controller
PS2DAT con P12 ;PS2 Controller DAT (Brown)
PS2CMD con P13 ;PS2 controller CMD (Orange)
PS2SEL con P14 ;PS2 Controller SEL (Blue)
PS2CLK con P15 ;PS2 Controller CLK (White)
PadMode con $79
; SSC32
cSSC_OUT con P11 ;Output pin for (SSC32 RX) on BotBoard (Yellow)
cSSC_IN con P10 ;Input pin for (SSC32 TX) on BotBoard (Blue)
cSSC_BAUD con i115200 ;SSC32 BAUD rate 38400 115200
; [SSC32 pins]
BasePin con 0
ShoulderPin con 1
ElbowPin con 2
WristPin con 3
GripperPin con 4
WristRotatepin con 5
;=========================================================================
;=========================================================================
;=========================================================================
; [BAP28 only mode]
#else
;--------------------------------------------------------------------
;[PS2 Controller]
PS2DAT con P12 ;PS2 Controller DAT (Brown)
PS2CMD con P13 ;PS2 controller CMD (Orange)
PS2SEL con P14 ;PS2 Controller SEL (Blue)
PS2CLK con P15 ;PS2 Controller CLK (White)
PadMode con $79
;--------------------------------------------------------------------
;[PIN NUMBERS]
BasePin con P0 ;Base Connection
ShoulderPin con P1 ;Shoulder Connection
ElbowPin con P2 ;Elbow Connection
WristPin con P3 ;Wrist Connection
GripperPin con P4 ;Gripper Connection
WristRotatePin con P5 ;Wrist Rotation Connection (Optional)
GripperFSRPin con P16 ;Force Sensing Resistor for the Gripper
;--------------------------------------------------------------------
;[SERVO OFFSETS]
Base_Offset con 0
Shoulder_Offset con 0
Elbow_Offset con 0
Wrist_Offset con 0
Gripper_Offset con 0
WristRotate_Offset con 0
#endif
;=========================================================================
;=========================================================================
;=========================================================================
;--------------------------------------------------------------------
;[ANALOG SWITCHING POINT]
GripperHoldPressure con 800 ;+/-1000 = neutral
;--------------------------------------------------------------------
;[MIN/MAX ANGLES] Degrees * 10
Base_MIN con -900 ;Mechanical limits of the Base
Base_MAX con 900
Shoulder_MIN con -780 ;Mechanical limits of the Shoulder
Shoulder_MAX con 900
Elbow_MIN con -710 ;Mechanical limits of the Elbow
Elbow_MAX con 450
Wrist_MIN con -900 ;Mechanical limits of the Wrist
Wrist_MAX con 900
Gripper_MIN con -720 ;Mechanical limits of the Gripper
Gripper_MAX con 680
WristRotate_MIN con -760 ;Mechanical limits of the WristRotate
WristRotate_MAX con 830
;--------------------------------------------------------------------
;[BODY DIMENSIONS]
BaseLength con 69 ;Length of the Base [mm]
#IFDEF AL5A
HumerusLength con 94 ;Length of the Humerus [mm]
UlnaLength con 108 ;Length of the Ulna [mm]
InitWristPosX con 20 ;Init position X
InitWristPosY con 145 ;Init position Y
InitGripperAngle1 con -400;Init Angle gripper
#ELSEIFDEF AL5B
HumerusLength con 119 ;Length of the Humerus [mm]
UlnaLength con 127 ;Length of the Ulna [mm]
InitWristPosX con 30 ;Init position X
InitWristPosY con 130 ;Init position Y
InitGripperAngle1 con -450;Init Angle gripper
#ELSEIFDEF AL5C
HumerusLength con 156 ;Length of the Humerus [mm]
UlnaLength con 154 ;Length of the Ulna [mm]
InitWristPosX con 35 ;Init position X
InitWristPosY con 145 ;Init position Y
InitGripperAngle1 con -450;Init Angle gripper
#ELSEIFDEF AL5D
HumerusLength con 147 ;Length of the Humerus [mm]
UlnaLength con 187 ;Length of the Ulna [mm]
InitWristPosX con 55 ;Init position X
InitWristPosY con 120 ;Init position Y
InitGripperAngle1 con -550;Init Angle gripper
#ENDIF
;--------------------------------------------------------------------
;[REMOTE]
DeadZone con 4 ;The deadzone for the analog input from the remote
;====================================================================
;[ANGLES]
BaseAngle1 var sword ;Actual Angle of the Base servo
ShoulderAngle1 var sword ;Actual Angle of the Shoulder servo
ElbowAngle1 var sword ;Actual Angle of the Elbow servo
WristAngle1 var sword ;Actual Angle of the Wrist servo
Gripper1 var sword ;Actual Angle of the Gripper servo
WristRotateAngle1 var sword ;Actual Angle of the Wrist Rotation servo
;--------------------------------------------------------------------
;[POSITIONS]
WristPosX var slong ;Position of the Gripper used for input
WristPosY var slong
GlobalGripperAngle1 var sword ;Angle of the Gripper used for input
;--------------------------------------------------------------------
;[Gripper]
GripperPressure var word ;Analog value from the FSR input
;--------------------------------------------------------------------
;--------------------------------------------------------------------
;[VARIABLES]
;GetArcCos
Cos4 var sword ;Input Cosinus of the given Angle, decimals = 4
AngleRad4 var sword ;Output Angle in radians, decimals = 4
;GetArcTan2
ArcTanX var sword ;Input X
ArcTanY var sword ;Input Y
ArcTan4 var slong ;Output ARCTAN2(X/Y)
;Arm Inverse Kinematics
IKWristPosX var slong ;Input position of the Wrist X
IKWristPosY var slong ;Input position of the Wrist Y
IKGripperAngle1 var slong ;Input Angle of the Gripper referring to the base
IKSW2 var long ;Length between Shoulder and Wrist
IKA14 var long ;Angle of the line S>W with respect to the ground in radians
IKA24 var long ;Angle of the line S>W with respect to the humerus in radians
Temp1 var long
Temp2 var long
IKSolutionWarning var bit ;Output true if the solution is NEARLY possible
IKSolutionError var bit ;Output true if the solution is NOT possible
IKSolutionErrorBeep var bit ;Have we beeped yet when we have an error?
IKWristAngle1 var sword ;Output Angle of Wrist in degrees
IKElbowAngle1 var sword ;Output Angle of Elbow in degrees
IKShoulderAngle1 var sword ;Output Angle of Shoulder in degrees
IKBaseAngle1 var sword ;Output Angle of Base in degrees
;--------------------------------------------------------------------
;[Ps2 Controller]
DualShock var Byte(7)
LastButton var Byte(2)
DS2Mode var Byte
PS2Index var byte
;[Speed limitation] ; variables to limit max angle step to limit speed
TargetWristAngle1 var sword
MaxStepWristAngle con 40
TargetGripper1 var sword
MaxStepGripper con 40
;--------------------------------------------------------------------
;[GLOBAL]
ControlMode var bit ;Switch Between Rover and Arm
RoverOn var bit ;Switch to turn on the Rover
Prev_RoverOn var bit ;Previous loop state
ArmOn var bit ;Switch to turn on the Arm
Prev_ArmOn var bit ;Previous loop state
;[TIMING]
lCurrentTime var long
lTimerStart var long ;Start time of the calculation cycles
lTimerEnd var long ;End time of the calculation cycles
;====================================================================
;====================================================================
;[INIT]
;Initialize servo positions
gosub InitTimer ; initialize a timer for the program
enable
Gosub InitArm
;PS2 controller
high PS2CLK
gosub Ps2Init
LastButton(0) = 255
LastButton(1) = 255
ArmOn = FALSE
IKSolutionErrorBeep = TRUE ; kje setup to beep when the arm has a problem
;====================================================================
;[MAIN]
main:
GOSUB GetCurrentTime], lTimerStart
#IF EnableFSR=1
;Read analog input
adin GripperFSRPin, GripperPressure
#ELSE
GripperPressure=1000
#ENDIF
;Read remote input
GOSUB Ps2Input
;[ARM CALCULATIONS]
;Inverse Kinematic calculations
GOSUB ArmIK [WristPosX, WristPosY, GlobalGripperAngle1]
ShoulderAngle1 = -IKShoulderAngle1+900
ElbowAngle1 = IKElbowAngle1+900
WristAngle1 = -IKWristAngle1
GOSUB CheckLimits
GOSUB WaitForPrevMove ;Wait for servos to finish the previous move
IF ArmOn THEN
IF ArmOn AND Prev_ArmOn=0 THEN
Sound P9,[60\4000,80\4500,100\5000]
gosub InitArm
GlobalGripperAngle1=0
ENDIF
IF IKSolutionError = FALSE then ; KJE - Added test to not do movement if there is an error
IKSolutionErrorBeep = FALSE ; reset if we have output any warning beeps
GOSUB Movement-BaseAngle1, -ShoulderAngle1, -ElbowAngle1, -WristAngle1, -Gripper1, -WristRotateAngle1, 100] ; kje - convert to integers
ELSEIF IKSolutionErrorBeep = FALSE
IKSolutionErrorBeep = TRUE ; KJE added beep if the arm tries to move to an error location.
Sound P9,[60\4000,60\4000]
ENDIF
ELSE
;Turn the bot off
IF Prev_ArmOn THEN
gosub InitArm
Sound P9,[100\5000,80\4500,60\4000]
ENDIF
ENDIF
;Store previous ArmOn State
IF ArmOn THEN
Prev_ArmOn = 1
ELSE
Prev_ArmOn = 0
ENDIF
goto main
;====================================================================
;[INITARM] Initialization for the AL5x Arm
InitArm:
;Gripper Positions
WristPosX = InitWristPosX ;Start positions of the Gripper
WristPosY = InitWristPosY
GlobalGripperAngle1 = InitGripperAngle1
;Inverse Kinematic calculations
GOSUB ArmIK [WristPosX, WristPosY, GlobalGripperAngle1]
ShoulderAngle1 = -IKShoulderAngle1+900
ElbowAngle1 = IKElbowAngle1+900
WristAngle1 = -IKWristAngle1
GOSUB CheckLimits
gosub movement [0, -ShoulderAngle1, -ElbowAngle1, -WristAngle1, 0, 0, 600]
pause 1000
return
;--------------------------------------------------------------------
;[PS2INIT] Initialization for the PS2 remote
Ps2Init:
low PS2SEL
shiftout PS2CMD,PS2CLK,FASTLSBPRE,$1\8]
shiftin PS2DAT,PS2CLK,FASTLSBPOST,[DS2Mode\8]
high PS2SEL
pause 1
if DS2Mode <> PadMode THEN
low PS2SEL
shiftout PS2CMD,PS2CLK,FASTLSBPRE,$1\8,$43\8,$0\8,$1\8,$0\8] ;CONFIG_MODE_ENTER
high PS2SEL
pause 1
low PS2SEL
shiftout PS2CMD,PS2CLK,FASTLSBPRE,$01\8,$44\8,$00\8,$01\8,$03\8,$00\8,$00\8,$00\8,$00\8] ;SET_MODE_AND_LOCK
high PS2SEL
pause 1
low PS2SEL
shiftout PS2CMD,PS2CLK,FASTLSBPRE,$01\8,$4F\8,$00\8,$FF\8,$FF\8,$03\8,$00\8,$00\8,$00\8] ;SET_DS2_NATIVE_MODE
high PS2SEL
pause 1
low PS2SEL
shiftout PS2CMD,PS2CLK,FASTLSBPRE,$01\8,$43\8,$00\8,$00\8,$5A\8,$5A\8,$5A\8,$5A\8,$5A\8] ;CONFIG_MODE_EXIT_DS2_NATIVE
high PS2SEL
pause 1
low PS2SEL
shiftout PS2CMD,PS2CLK,FASTLSBPRE,$01\8,$43\8,$00\8,$00\8,$00\8,$00\8,$00\8,$00\8,$00\8] ;CONFIG_MODE_EXIT
high PS2SEL
pause 100
sound P9,[100\4000, 100\4500, 100\5000]
goto Ps2Init ;Check if the remote is initialized correctly
ENDIF
return
;--------------------------------------------------------------------
;[PS2Input] reads the input data from the Wiiremote and processes the
;data to the parameters.
Ps2Input:
low PS2SEL
shiftout PS2CMD,PS2CLK,FASTLSBPRE,$1\8,$42\8]
shiftin PS2DAT,PS2CLK,FASTLSBPOST,[DualShock(0)\8, DualShock(1)\8, DualShock(2)\8, DualShock(3)\8, |
DualShock(4)\8, DualShock(5)\8, DualShock(6)\8]
high PS2SEL
pause 10
IF (DualShock(1).bit3 = 0) and LastButton(0).bit3 THEN ;Start Button test
IF(ArmOn) THEN
;Turn off
ArmOn = False
;Reset Gripper Positions
WristPosX=InitWristPosX ;Reset IK postitions of the Gripper
WristPosY=InitWristPosY
BaseAngle1=0 ;Reset servo angles.
GlobalGripperAngle1=-550
TargetGripper1=0
Gripper1=0
TargetWristAngle1=0
WristRotateAngle1=0
ELSE
;Turn on
ArmOn = True
;Put gripper horizontal
GlobalGripperAngle1=0
ENDIF
ENDIF
IF ArmOn THEN
; IF (DualShock(1).bit4 = 0) and LastButton(0).bit4 THEN ;D-Up Button test
; ENDIF
; IF (DualShock(1).bit6 = 0) and LastButton(0).bit6 THEN ;D-Down Button test
; ENDIF
; IF (DualShock(1).bit7 = 0) and LastButton(0).bit7 THEN ;D-Left Button test
; ENDIF
; IF (DualShock(1).bit5 = 0) and LastButton(0).bit5 THEN ;D-Right Button test
; ENDIF
; IF (DualShock(2).bit5 = 0) and LastButton(1).bit5 THEN ;Circle Button test
; ENDIF
; IF (DualShock(2).bit7 = 0) and LastButton(1).bit7 THEN ;Square Button test
; ENDIF
IF (DualShock(2).bit4 = 0) and LastButton(1).bit4 THEN ;Triangle Button test
TargetWristAngle1 = 0 ;Put the wrist rotate servo to the middle position
ENDIF
IF (DualShock(2).bit6 = 0) and LastButton(1).bit6 THEN ;Cross Button test
IF (Gripper1 <> Gripper_MAX) THEN
TargetGripper1 = Gripper_MAX ;Fully open Gripper
#IF EnableFSR=1
ELSE
TargetGripper1 = Gripper_MIN
#ENDIF
ENDIF
ENDIF
IF (DualShock(2).bit2 = 0) AND (GripperPressure>GripperHoldPressure) THEN ;L1 Button test
Gripper1 = (Gripper1-80) min Gripper_MIN ;Gripper Close
ENDIF
IF (DualShock(2).bit0 = 0)THEN ;L2 Button test
TargetGripper1 = (TargetGripper1+40) max Gripper_MAX ;Gripper Open
ENDIF
IF (DualShock(2).bit3 = 0) THEN ;R1 Button test
TargetWristAngle1 = (TargetWristAngle1-40) min WristRotate_MIN ;Wrist Rotate CW
ENDIF
IF (DualShock(2).bit1 = 0) THEN ;R2 Button test
TargetWristAngle1 = (TargetWristAngle1+40) max WristRotate_MAX ;Wrist Rotate CCW
ENDIF
IF ABS(Dualshock(5) - 128) > DeadZone THEN ;Left Stick L/R
IF IKSolutionWarning THEN ;Allow only movement to the base
WristPosX = WristPosX -((Dualshock(5) - 128)/18) MIN 0 ;X Position
ELSE
WristPosX = WristPosX -(Dualshock(5) - 128)/18 ;X Position
ENDIF
ENDIF
IF ABS(Dualshock(6) - 128) > DeadZone THEN ;Left Stick U/D
IF IKSolutionWarning THEN
IF WristPosY > BaseLength THEN ;Allow only downward movement
WristPosY = WristPosY -((Dualshock(6) - 128)/18) MIN 0
ELSE ;Allow only upward movement
WristPosY = WristPosY -((Dualshock(6) - 128)/18) MAX 0
ENDIF
ELSE
WristPosY = WristPosY -(Dualshock(6) - 128)/18 ;Y Position
ENDIF
ENDIF
IF ABS(Dualshock(3) - 128) > DeadZone THEN ;Right Stick L/R
BaseAngle1 = BaseAngle1 -(Dualshock(3) - 128)/4 ;Base Rotation
ENDIF
IF ABS(Dualshock(4) - 128) > DeadZone THEN ;Right Stick U/D
GlobalGripperAngle1 = GlobalGripperAngle1-(Dualshock(4) - 128)/2 ;Gripper Angle
ENDIF
;Limit wristrotate max speed
IF (ABS(WristRotateAngle1-TargetWristAngle1) > MaxStepWristAngle) THEN
IF ((WristRotateAngle1-TargetWristAngle1) >= 0) THEN
WristRotateAngle1 = WristRotateAngle1 - MaxStepWristAngle
ELSE
WristRotateAngle1 = WristRotateAngle1 + MaxStepWristAngle
ENDIF
ELSE
WristRotateAngle1 = TargetWristAngle1
ENDIF
;Limit gripper max speed
IF (ABS(Gripper1-TargetGripper1) > MaxStepGripper) THEN
IF ((Gripper1-TargetGripper1) >= 0) THEN
IF (GripperPressure>GripperHoldPressure) THEN
Gripper1 = Gripper1 - MaxStepGripper
ENDIF
ELSE
Gripper1 = Gripper1 + MaxStepGripper
ENDIF
ELSE
Gripper1 = TargetGripper1
ENDIF
ENDIF
LastButton(0) = DualShock(1)
LastButton(1) = DualShock(2)
return
;--------------------------------------------------------------------
;[GETARCCOS] Get the sinus and cosinus from the angle +/- multiple circles
;Cos4 - Input Cosinus
;AngleRad4 - Output Angle in AngleRad4
GetArcCos[Cos4]
Cos4 = (Cos4 max c4DEC) min -c4DEC
IF Cos4>=0 THEN
AngleRad4 = GetACos(Cos4/78+1) ;78=table resolution (1/127)
AngleRad4 = AngleRad4*62 ;62=acos resolution (pi/2/255)
ELSE
AngleRad4 = GetACos(-Cos4/78+1)
AngleRad4 = 31416-AngleRad4*62 ;62=acos resolution (pi/2/255)
ENDIF
return AngleRad4
;--------------------------------------------------------------------
;[ARCTAN2] Gets the Inverse Tangus from X/Y with the where Y can be zero or negative
;ArcTanX - Input X
;ArcTanY - Input Y
;ArcTan4 - Output ARCTAN2(X/Y)
GetArcTan2 [ArcTanX, ArcTanY]
IF(ArcTanX = 0) THEN ; X=0 -> 0 or PI
IF(ArcTanY >= 0) THEN
ArcTan4 = 0
ELSE
ArcTan4 = 31415
ENDIF
ELSE
IF(ArcTanY = 0) THEN ; Y=0 -> +/- Pi/2
IF(ArcTanX > 0) THEN
ArcTan4 = 15707
ELSE
ArcTan4 = -15707
ENDIF
ELSE
IF(ArcTanY > 0) THEN ;ARCTAN(X/Y)
ArcTan4 = TOINT(FATAN(TOFLOAT(ArcTanX) / TOFLOAT(ArcTanY))*10000.0)
ELSE
IF(ArcTanX > 0) THEN ;ARCTAN(X/Y) + PI
ArcTan4 = TOINT(FATAN(TOFLOAT(ArcTanX) / TOFLOAT(ArcTanY))*10000.0) + 31415
ELSE ;ARCTAN(X/Y) - PI
ArcTan4 = TOINT(FATAN(TOFLOAT(ArcTanX) / TOFLOAT(ArcTanY))*10000.0) - 31415
ENDIF
ENDIF
ENDIF
ENDIF
return ArcTan4
;--------------------------------------------------------------------
;[ARM INVERSE KINEMATICS] Calculates the angles of the Humerus and Ulna for the given position of the Gripper
;IKGripperPosX - Input position of the Gripper X
;IKGripperPosY - Input position of the Gripper Y
;IKGripperPosZ - Input Position of the Gripper Z
;IKGripperAngle1 - Input Angle of the Gripper referring to the base
;IKSolutionWarning - Output true IF the solution is NEARLY possible
;IKSolutionError - Output true IF the solution is NOT possible
;IKUlnaAngle1 - Output Angle of Ulna in degrees
;IKHumerusAngle1 - Output Angle of Humerus in degrees
;IKBaseAngle1 - Output Angle of Base in degrees
ArmIK [IKWristPosX, IKWristPosY, IKGripperAngle1]
;IKSW - Length between Shoulder and wrist
IKSW2 = SQR((((IKWristPosY-BaseLength)*(IKWristPosY-BaseLength))+(IKWristPosX*IKWristPosX))*(c4DEC/4)) ; KJE - value 1/2 what it should be now
;IKA1 - Angle between SW line and the ground in rad
GOSUB GetArcTan2 (IKWristPosY-BaseLength), IKWristPosX], IKA14
;IKA2 - Angle of the line S>W with respect to the humerus in radians
Temp1 = (((HumerusLength*HumerusLength) - (UlnaLength*UlnaLength))*(c4DEC/4) + (IKSW2*IKSW2)) ; KJE - Value is 1/4 of what it should be.
Temp2 = ((2*HumerusLength)*c2DEC * IKSW2) ; KJE - value is 1/2
GOSUB GetArcCos (Temp1 / (Temp2/c4DEC)) *2 ], IKA24 ; KJE - corrected for 1/4value / 1/2 value
;Elbow Angle
Temp1 = (((HumerusLength*HumerusLength) + (UlnaLength*UlnaLength))*(c4DEC/4) - (IKSW2*IKSW2)) ; KJE 1/4
Temp2 = (2*HumerusLength*Ulnalength)
GOSUB GetArcCos (Temp1 / Temp2) * 4] ; kje fixed for 1/4
IKElbowAngle1 = -(1800-AngleRad4*180/3141)
;Shoulder Angle
IKShoulderAngle1 = (IKA14 + IKA24) * 180 / 3141
;Wrist Angle
IKWristAngle1 = IKGripperAngle1-IKElbowAngle1-IKShoulderAngle1
;Set the Solution quality
IKSolutionWarning = ((IKSW2*2) > ((UlnaLength+HumerusLength-40)*c2DEC)) ; kje fixed for 1/2
IKSolutionError = ((IKSW2*2) > ((UlnaLength+HumerusLength)*c2DEC)) ; kje fixed for 1/2
return
;--------------------------------------------------------------------
;[CHECK ANGLES] Checks the mechanical limits of the servos
CheckLimits:
BaseAngle1 = (BaseAngle1 min Base_MIN) max Base_MAX
ShoulderAngle1 = (ShoulderAngle1 min Shoulder_MIN) max Shoulder_MAX
ElbowAngle1 = (ElbowAngle1 min Elbow_MIN) max Elbow_MAX
WristAngle1 = (WristAngle1 min Wrist_MIN) max Wrist_MAX
Gripper1 = (Gripper1 min Gripper_MIN) max Gripper_MAX
WristRotateAngle1 =(WristRotateAngle1 min WristRotate_MIN) max WristRotate_MAX
return
;=====================================================================
; Timer support...
;====================================================================
lTimerCnt var long
;--------------------------------------------------------------------
;[TIMER INTERRUPT INIT]
#ifdef BASICATOMPRO28
TIMERINT con TIMERAINT
ONASMINTERRUPT TIMERAINT, HANDLE_TIMERA_ASM
;--------------------------------------------------------------------
;[InitTimer] - Initializes the timer for the program
InitTimer:
;Timer
; Timer A init, used for timing of messages and some times for timing code...
TIMERINT con TIMERAINT
WTIMERTICSPERMSMUL con 64 ; BAP28 is 16mhz need a multiplyer and divider to make the conversion with /8192
WTIMERTICSPERMSDIV con 125 ;
TMA = 0 ; clock / 8192 ; Low resolution clock - used for timeouts...
ENABLE TIMERINT
return
;==============================================================================
;[Handle_Timer_asm] - Handle timer A overflow in assembly language. Currently only
;used for timings for debuging the speed of the code
;Now used to time how long since we received a message from the remote.
;this is important when we are in the NEW message mode, as we could be hung
;out with the robot walking and no new commands coming in.
;==============================================================================
BEGINASMSUB
HANDLE_TIMERA_ASM
push.l er1 ; first save away ER1 as we will mess with it.
bclr #6,@IRR1:8 ; clear the cooresponding bit in the interrupt pending mask
mov.l @LTIMERCNT:16,er1 ; Add 256 to our counter
add.l #256,er1
mov.l er1, @LTIMERCNT:16
pop.l er1
rte
ENDASMSUB
return ; Put a basic statement before...
;==============================================================================
;[GetCurrentTime] - Gets the Timer value from our overflow counter as well as the TCA counter. It
; makes sure of consistancy. That is it is very posible that
; after we grabed the timers value it overflows, before we grab the other part
; so we check to make sure it is correct and if necesary regrab things.
;==============================================================================
GetCurrentTime:
lCurrentTime = lTimerCnt + TCA
; handle wrap
if lTimerCnt <> (lCurrentTime & 0xffffff00) then
lCurrentTime = lTimerCnt + TCA
endif
return lCurrentTime
#else ; Arc32 or Bap40
TIMERINT con TIMERB1INT
ONASMINTERRUPT TIMERB1INT, HANDLE_TIMERB1_ASM
;--------------------------------------------------------------------
;[InitServoDriver] - Initializes the servo driver including the main timer used in the phoenix code
InitTimer:
;Timer
; Timer A init, used for timing of messages and some times for timing code...
TIMERINT con TIMERB1INT
WTIMERTICSPERMSMUL con 256 ; Arc32 is 20mhz need a multiplyer and divider to make the conversion with /8192
WTIMERTICSPERMSDIV con 625 ;
TMB1 = 0 ; clock / 8192 ; Low resolution clock - used for timeouts...
ENABLE TIMERINT
return
;==============================================================================
;[Handle_Timer_asm] - Handle timer A overflow in assembly language. Currently only
;used for timings for debuging the speed of the code
;Now used to time how long since we received a message from the remote.
;this is important when we are in the NEW message mode, as we could be hung
;out with the robot walking and no new commands coming in.
;==============================================================================
BEGINASMSUB
HANDLE_TIMERB1_ASM
push.l er1 ; first save away ER1 as we will mess with it.
bclr #5,@IRR2:8 ; clear the cooresponding bit in the interrupt pending mask
mov.l @LTIMERCNT:16,er1 ; Add 256 to our counter
add.l #256,er1
mov.l er1, @LTIMERCNT:16
pop.l er1
rte
ENDASMSUB
BEGINASMSUB
return ; Put a basic statement before...
;==============================================================================
;[GetCurrentTime] - Gets the Timer value from our overflow counter as well as the TCA counter. It
; makes sure of consistancy. That is it is very posible that
; after we grabed the timers value it overflows, before we grab the other part
; so we check to make sure it is correct and if necesary regrab things.
;==============================================================================
GetCurrentTime:
lCurrentTime = lTimerCnt + TCB1
; handle wrap
if lTimerCnt <> (lCurrentTime & 0xffffff00) then
lCurrentTime = lTimerCnt + TCB1
endif
return lCurrentTime
#endif
;-------------------------------------------------------------------------------------
;[ConvertTimeMS]
_ttconv var long
ConvertTimeMS[_ttconv]:
return (_ttconv * WTIMERTICSPERMSMUL)/WTIMERTICSPERMSDIV
#ifdef USE_SSC32
;--------------------------------------------------------------------
;[MOVEMENT] Does a servo groupmove to ensure that all servos reach
;the destination at the same time.
BasePosition1 var slong
ShoulderPosition1 var slong
ElbowPosition1 var slong
WristPosition1 var slong
GripperPosition1 var slong
WristRotatePosition1 var slong
MaxSpeed var slong
PrevSpeed var slong
Movement [BasePosition1,ShoulderPosition1,ElbowPosition1,WristPosition1,GripperPosition1,WristRotatePosition1,MaxSpeed]
; Warning... using simple conversion from HSERVO type calc to usec...
disable TIMERINT ; disable interrupt duing serout as to keep from corrupting data.
serout cSSC_OUT, cSSC_BAUD, "#", dec BasePin, "P", sdec 1500 + (BasePosition1*stepsperdegree1)/(100 * 16), |
"#", dec ShoulderPin, "P", sdec 1500 + (ShoulderPosition1*stepsperdegree1)/1600, |
"#", dec ElbowPin, "P", sdec 1500 + (ElbowPosition1*stepsperdegree1)/1600, |
"#", dec WristPin, "P", sdec 1500 + (WristPosition1*stepsperdegree1)/1600, |
"#", dec GripperPin, "P", sdec 1500 + (GripperPosition1*stepsperdegree1)/1600, |
"#", dec WristRotatepin, "P", sdec 1500 + (WristRotatePosition1*stepsperdegree1)/1600, |
"T", dec MaxSpeed, 13]
enable TIMERINT ; allow the interrupt again
PrevSpeed = MaxSpeed
return
CycleTime var long
WaitForPrevMove:
do
GOSUB GetCurrentTime], lTimerEnd
GOSUB ConvertTimeMS[lTimerEnd-lTimerStart], CycleTime
while CycleTime < PrevSpeed
return
#else
;--------------------------------------------------------------------
;[MOVEMENT] Does a servo groupmove to ensure that all servos reach
;the destination at the same time.
_mindex var byte
BasePosition1 var slong
ShoulderPosition1 var slong
ElbowPosition1 var slong
WristPosition1 var slong
GripperPosition1 var slong
WristRotatePosition1 var slong
MaxSpeed var slong
_mPrev_BasePos1 var slong
_mPrev_ShoulderPos1 var slong
_mPrev_ElbowPos1 var slong
_mPrev_WristPos1 var slong
_mPrev_GripperPos1 var slong
_mPrev_WristRotatePos1 var slong
_mBaseSpeed var slong
_mShoulderSpeed var slong
_mElbowSpeed var slong
_mWristSpeed var slong
_mGripperSpeed var slong
_mWristRotateSpeed var slong
_mMaxSpeed1 var slong
_mlongestmove1 var slong
Movement [BasePosition1,ShoulderPosition1,ElbowPosition1,WristPosition1,GripperPosition1,WristRotatePosition1,MaxSpeed]
if(MaxSpeed<>0)then
;Get the longest move
gosub getlongest[BasePosition1 -_mPrev_BasePos1, |
ShoulderPosition1 -_mPrev_ShoulderPos1, |
ElbowPosition1 -_mPrev_ElbowPos1, |
WristPosition1 -_mPrev_WristPos1, |
GripperPosition1 -_mPrev_GripperPos1, |
WristRotatePosition1 -_mPrev_WristRotatePos1], _mlongestmove1
; kje - converted to return maxspeed *10 -
_mMaxspeed1 = ((_mlongestmove1*stepsperdegree1)/(MaxSpeed/2))
;Calculate speed for each servo
gosub getspeed[BasePosition1, _mPrev_BasePos1, _mlongestmove1, _mMaxSpeed1], _mBaseSpeed
gosub getspeed[ShoulderPosition1, _mPrev_ShoulderPos1,_mlongestmove1, _mMaxSpeed1], _mShoulderSpeed
gosub getspeed[ElbowPosition1, _mPrev_ElbowPos1, _mlongestmove1, _mMaxSpeed1], _mElbowSpeed
gosub getspeed[WristPosition1, _mPrev_WristPos1, _mlongestmove1, _mMaxSpeed1], _mWristSpeed
gosub getspeed[GripperPosition1, _mPrev_GripperPos1, _mlongestmove1, _mMaxSpeed1], _mGripperSpeed
gosub getspeed[WristRotatePosition1, _mPrev_WristRotatePos1,_mlongestmove1,_mMaxSpeed1], _mWristRotateSpeed
else
_mBaseSpeed = 0
_mShoulderSpeed = 0
_mElbowSpeed = 0
_mWristSpeed = 0
_mGripperSpeed = 0
_mWristRotateSpeed = 0
endif
;Drive servos
hservo [BasePin\ (BasePosition1*stepsperdegree1)/100 + Base_Offset\_mBaseSpeed, |
ShoulderPin\ (ShoulderPosition1*stepsperdegree1)/100 + Shoulder_Offset\_mShoulderSpeed, |
ElbowPin\ (ElbowPosition1*stepsperdegree1)/100 + Elbow_Offset\_mElbowSpeed, |
WristPin\ (WristPosition1*stepsperdegree1)/100 + Wrist_Offset\_mWristSpeed, |
GripperPin\ (GripperPosition1*stepsperdegree1)/100 + Gripper_Offset\_mGripperSpeed, |
WristRotatepin\(WristRotatePosition1*stepsperdegree1)/100 + WristRotate_Offset\_mWristRotateSpeed]
serout s_out, i115200,[sdec shoulderposition1, " ", sdec ((shoulderposition1 * stepsperdegree1)/100), |
" ", sdec (((shoulderposition1 * stepsperdegree1)/100)+ shoulder_offset)," ", sdec _mshoulderspeed, 13];|
; " elbow - ", sdec elbowposition1, " ", sdec ((elbowposition1 * stepsperdegree1)/100), |
; " ", sdec (((elbowposition1 * stepsperdegree1)/100)+ elbow_offset), 13]
return
;--------------------------------------------------------------------
;[WAITFORPREVMOVE] Loop that wait for the previous servo move to be finished
idle var byte
finished var byte
junk var word
WaitForPrevMove
; Simple loop to check the status of all of servos. This loop will
; terminate when all of the servos say that they are idle. I.E.
; they reached their new destination.
do
finished = hservoidle(BasePin) and hservoidle(ShoulderPin) and hservoidle(ElbowPin) and hservoidle(WristPin) and hservoidle (GripperPin) and hservoidle(WristRotatePin)
while (NOT finished)
if(NOT finished)then WaitForPrevMove
_mPrev_BasePos1 = BasePosition1
_mPrev_ShoulderPos1 = ShoulderPosition1
_mPrev_ElbowPos1 = ElbowPosition1
_mPrev_WristPos1 = WristPosition1
_mPrev_GripperPos1 = GripperPosition1
_mPrev_WristRotatePos1 = WristRotatePosition1
return
;--------------------------------------------------------------------
;[GETLONGEST] Returns the longest value
one var slong
two var slong
three var slong
four var slong
five var slong
six var slong
GetLongest[one,two,three,four,five,six]
if(one<0)then
one=-1*one
endif
if(two<0)then
two=-1*two
endif
if(three<0)then
three=-1*three
endif
if(four<0)then
four=-1*four
endif
if(five<0)then
five=-1*five
endif
if(six<0)then
six=-1*six
endif
if(one<two)then
one=two
endif
if(one<three)then
one=three
endif
if(one<four)then
one=four
endif
if(one<five)then
one=five
endif
if(one<six)then
one=six
endif
return one
;--------------------------------------------------------------------
;[GetSpeed] Calculate the speed for each servo
newpos1 var slong
oldpos1 var slong
longest1 var slong
maxval1 var slong
GetSpeed[newpos1,oldpos1,longest1,maxval1]
if(newpos1>oldpos1)then
return ((((newpos1-oldpos1)*maxval1)/longest1)/10 Max 200)
endif
return ((((oldpos1-newpos1)*maxval1)/longest1)/10 Max 200)
;--------------------------------------------------------------------
#endif ; USE_SSC32
