Actuonix/Firgellie Linear Actuator L12 -P series working current

Help & Support Robot Parts
1

Hi all,

I am using the Actuonix linear actuator (L12-100-210-6P) with the LAC control board and I want to measure the practical working current of the actuator.

Anyone knows on which wire I should measure the current? Should it be the red wire (the wire in the middle)?

Many thanks.

Chen

2

Hi there,

Welcome on the forum.

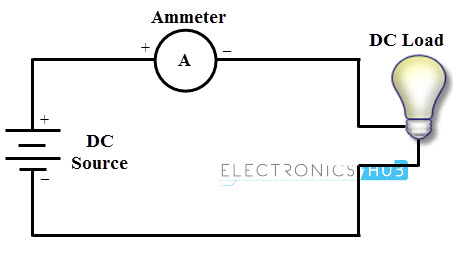

Be sure to follow this picture to properly measure the current: Current-Measurement

In your case, the load is the red wire of the actuator. Make sure your not measuring in parallel but in serie with your amp-meter.

Let me know if this help.

3

Hi pjutras,

Thanks for the reply.

The only reason I am asking is for this particular actuator (—P version actuonix actuator), it has five wires and I am not exactly sure how the actuator is controlled and what are the other wires used for (it is not like a servo motor, which has three wires). So, I guess it should be the red wire and want to confirm that.

Chen

4

I understand your question now.

Thank you for the clarification.

Your actuator is probably one with an Option P which means a Potentiometer Position Feedback.
This is why it has 5 wires.

Orange: Feedback Potentiometer negative reference rail
Purple: Feedback Potentiometer wiper
Red: Motor V+
Black: Motor V-
Yellow: Feedback Potentiometer positive reference rail

This information was found in this datasheet at page 2: https://www.robotshop.com/media/files/pdf/L12_Datasheet-2.pdf

Let me know if this help.
Cheers!
