Chapter 2: How to Open/Replace Frame Roomba Discovery

Chapters Menu

Chapter 1: What Is Roomba Discovery Series Saying To Me? Chapter 2: How to Open/Replace Frame Roomba Discovery Chapter 3: How to Replace Roomba Discover Series Main Brush Casing Chapter 4: How to Replace Roomba Discovery Main Brush Motor Chapter 5: How to Replace Roomba Discovery Motherboard Chapter 6: How to Replace Roomba Discovery Speaker Chapter 7: How to Replace Roomba Discovery Side Brush Motor Chapter 8: How to Replace Roomba Discovery Side Brush Gear Assembly Chapter 9: How to Replace Roomba Discovery Front Caster Wheel Chapter 10: How to Replace Roomba Discovery Caster Wheel Drop Switch Chapter 11: How to Replace Roomba Discovery Drive Wheel Chapter 12: How to Replace Roomba Discovery Cliff Sensors Chapter 13: Roomba Discovery Motherboard Connections To service and maintain your Roomba Discovery 4XXX/4XX series, you will need to be able to open and close the robot’s frame. The Discovery Series Roomba has two main parts that need to be loosened and removed to gain access to its insides. These two parts are the robot’s front bumper, and top frame cover. This also doubles as a guide on how to replace your front bumper and/or top cover. The Discovery Series Roombas are those pictured below: 116.jpg

2.1          Front Unit

Removal and Assembly of the Front Bumper

Removal Phase

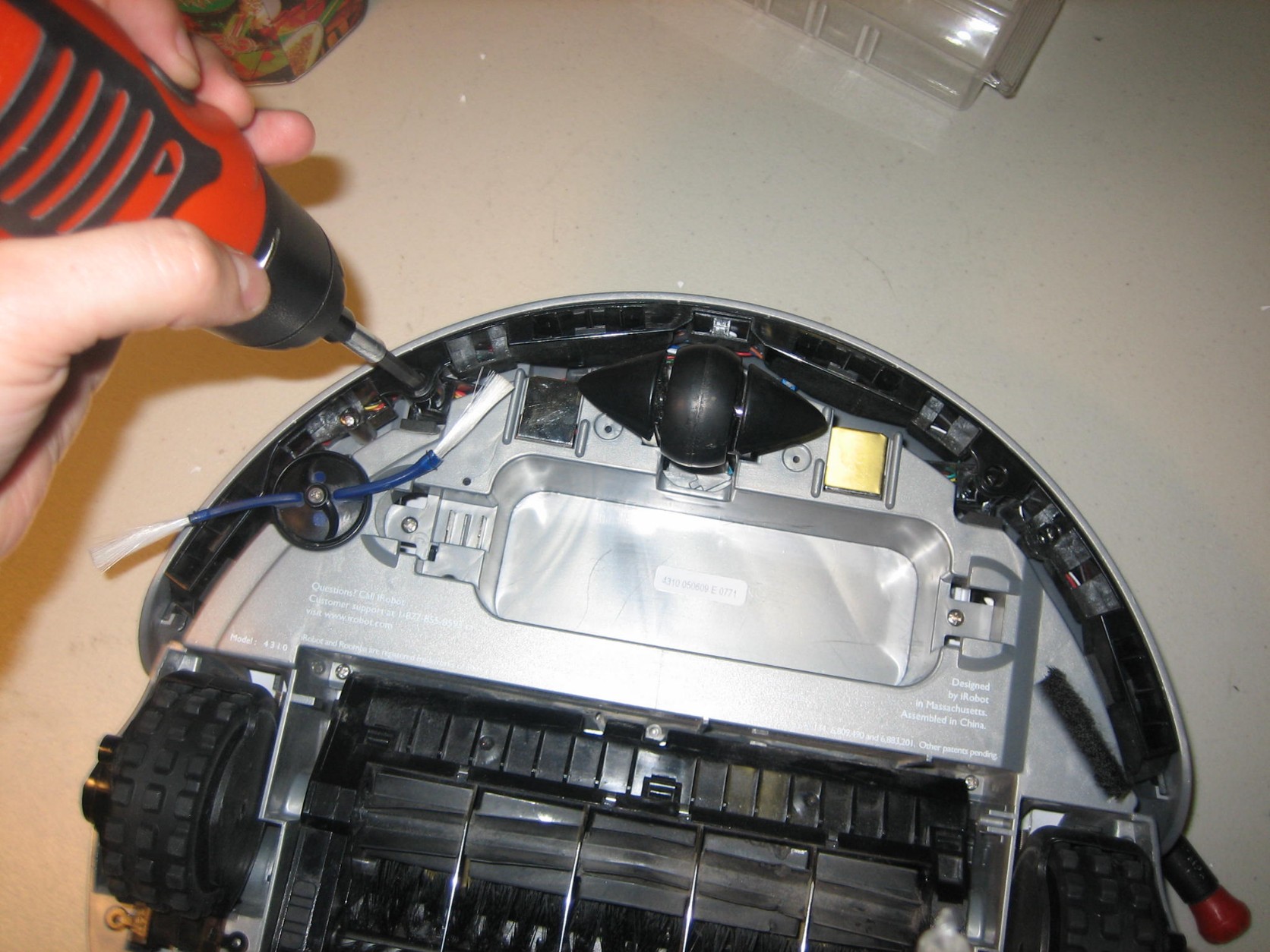

1 - Unscrew the screws (A)


- Push with both thumbs at points (A) and (B) in order  to take the front bumper out of its sockets.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

- Take a pair of pliers and remove the connector from the front bumper (if needed)

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

Assembly Phase

- Reconnect the connector for the front bumper with pliers or fingers.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

  2 - Align the bumper at points (A), (B) and (C) and push on the bumper with both hands in order to insert the bumper in position.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

3 - Rescrew Screws A

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

2.2          Cover Unit

Removal and Assembly of the Cover Removal Phase 1 - Unscrew the screws (A)215.jpg 2 - Push with both thumbs at points (A) and (B) in order to take the front bumper out of its sockets.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

3 - To replace the top cover you may want to remove the front bumper, though this may not be necessary. Using a pair of pliers, disconnect the bumper from its connector, as pictured.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

4 - Unscrew the screws (B)

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

5 - Unscrew the screws (C)

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

Note: The middle screw is not present on all Roomba’s. 6 - Unscrew the screws (D)

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

7 - Unscrew the screws (E)

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

8 - Remove particle bin. Turn Roomba over and pull on the front cover.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

9 - If needed disconnect the connector for Roomba’s front cover.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

Assembly Phase

1 - Reconnect to the motherboard the connector for the cover. Align Roomba’s cover and press on the cover to fit it properly. Make sure the sides of the cover are fully inserted, and that the top cover matches up flush with the robot’s frame.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

- Reconnect the connector for the front bumper with pliers or fingers. This step can be omitted if you did not disconnect the bumper in previous steps.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

3 - Align the bumper at points (A), (B) and (C) and push on the bumper with both hands in order to insert the bumper in position.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

4 - Reinsert the screws (B)

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

5 - Reinsert the screws (C) 125.jpg Note: The middle screw is not present on all Roomba’s. 6 - Reinsert the screws (D)


7 - Reinsert the screws (E)

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

8 - Reinsert the screws (A). Reattach the dustbin, and you have now fully reassembled your Roomba.

Roomba Discovery 4XXX & 4XX Servicing and Repair Guide

For addition help contact the RobotShop Technical Team via our Online Support Center. Roomba replacement parts can be found at RobotShop.
