This guide explains how to replace the front caster wheel drop switch on a non-swivel
Roomba Discovery 4XXX/4XX series, pictured below:
10.1 Caster Wheel Drop Switch Replacement
Roomba replacement caster wheel drop switch can be found at RobotShop.
Removal Phase
1 - Unscrew screws (A).

2 - Remove any glue holding the wires for the caster wheel switch.

3 - Remove the front support.

4 - Remove the springs for the bumper (if needed).

5 - With a pair of pliers, remove the caster wheel drop switch off its socket.

6 - Cut the defective switch off.

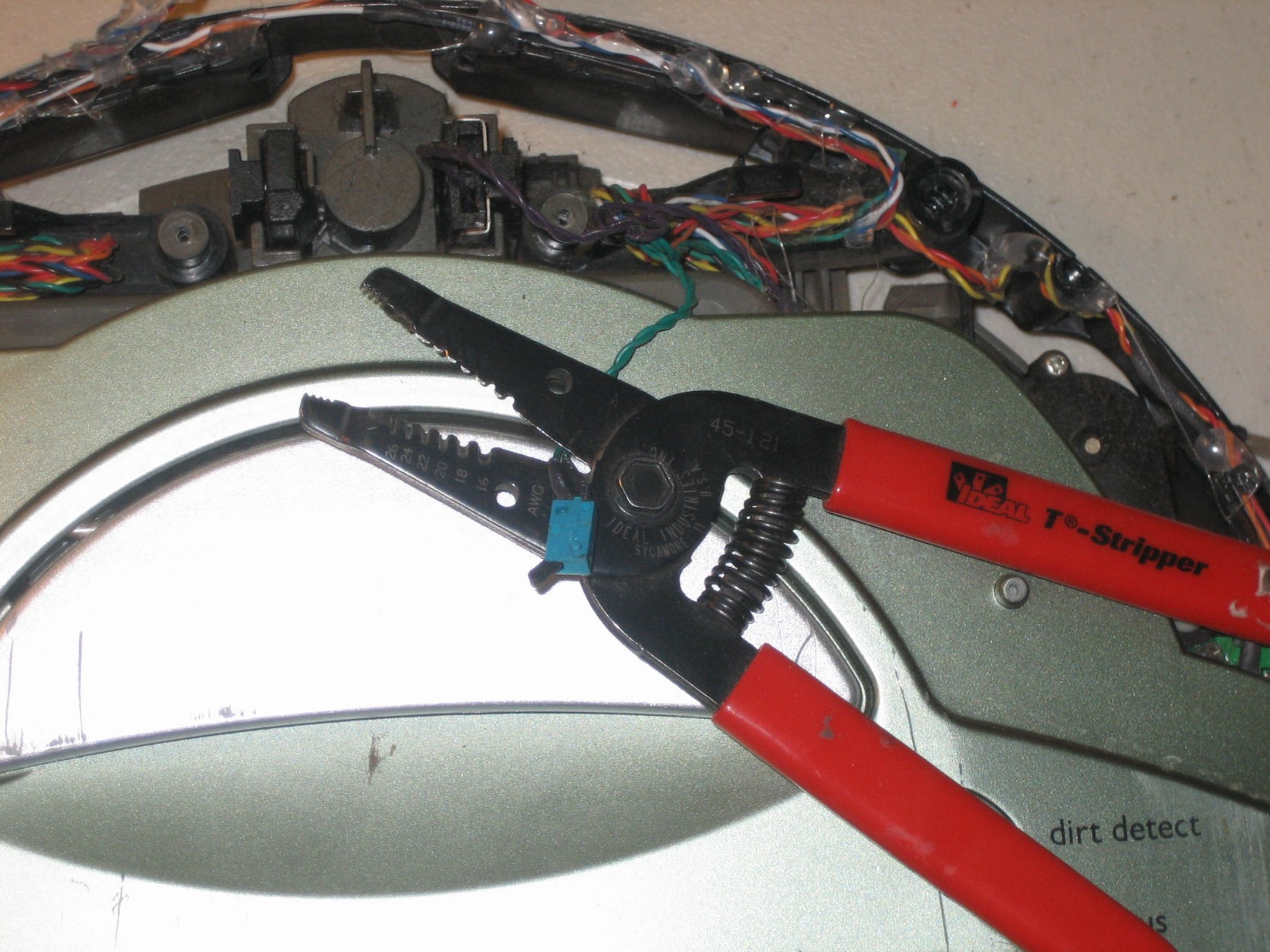

7 - Strip the end of the wires for the caster wheel drop switch coming from the robot.

8 - Cut the wires of the replacement switch.

9 - Strip the wires of the replacement switch.

Assembly Phase
1 - Twist the sripped wires of the replacement switch together with the stripped wires coming from the robot.

2 - Solder the wires together.

3 - Place electrical tape around the soldered part of the wires.

4 - With a pair of pliers place the wheel drop switch correctly in its place.

5 -
Wheel drop switch should look like this when installed in its socket:

6 - Reinsert the springs if you had removed them.

7 - Place the front support correctly and put back in screws (A).

8 - Place the purple wire for the caster wheel correctly on the front support.

9 - Place glue to hold the purple wire in place, and you’re done.

For details on how to reassemble the Roomba’s frame, please see the Roomba Discovery 4XXX & 4XX Servicing and Repair Guide, Ch. 2: How to Open Roomba / Replace Frame.
