Quadruped - 2DOF

Quadruped, yes, four legs again.

I think I am nore enjoy in building robots than programming bots. It just too much fun to see the idea in your brain comes out alive. :)

This one I tried to use less soldering or modify any parts to make it as simple as possible. In this project I am hoping to use Arduino328 + Expansion shields + 7.2V Lipo + Regulate UBEC 5V and those can fit inside the body.

Here is the 3D printed joint as bracket for these two servos. Notice I have use a metal tubing to reduce the friction. The bolt sticking out has glued with JB welder. It's pretty strong to hold the bolt in place.

I cut these tubing that barely sticking out from holes so the nuts won't lock down the joints when it moves.

Couple of adjustment for legs parts.

A leg completed with assembling. (TOP SIDE)

A leg completed with assembling. (BOTTOM SIDE)

Designning body after few printouts.

I decide to use fully auto instead what I usually do to remote them.

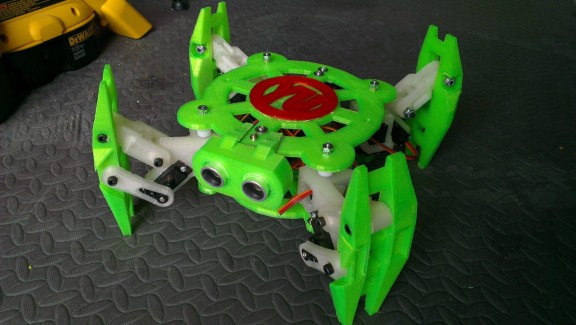

Completed!! I also add my logo just for fun.

Since it was fun and I had few extra parts when I did the modifiction on the design so I printed more parts to have second set.

2nd set with a different body plate :)

That's all. Hope you guys like it and I will post the 3D parts on thingiverse later.

__________________________________________________________________________

UPDATE:

All 3D Files had been uploaded to thingiverse:
http://www.thingiverse.com/thing:152638
