BOXZ is is an open source robot platform for interactive entertainment! We connected Arduino,Plexiglass(or cardboard) Origami and your idea together, so we can easily and quickly build a remote robot by ourself! You can assembled it like LEGO! We can use it to playing football game, racing, fighting or some other interesting things!   [V001E] The beautiful memory of childhoodVideo link: http://v.youku.com/v_show/id_XNDIzOTk5NDYw.html http://www.youtube.com/watch?v=bjh2LX269SQ&feature=youtu.be[V002E]Who ...


BOXZ

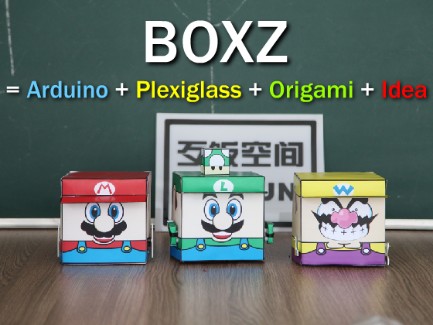

BOXZ is is an open source robot platform for interactive entertainment! We connected Arduino,Plexiglass(or cardboard) Origami and your idea together, so we can easily and quickly build a remote robot by ourself! You can assembled it like LEGO! We can use it to playing football game, racing, fighting or some other interesting things!



[V001E] The beautiful memory of childhood
Video link:
http://v.youku.com/v_show/id_XNDIzOTk5NDYw.html
http://www.youtube.com/watch?v=bjh2LX269SQ&feature=youtu.be
[V002E]Who is the princess in your heart
Video link:
http://v.youku.com/v_show/id_XNDQ2MzI4MjMy.html
http://www.youtube.com/watch?v=nGvgl0rJN4g&feature=plcp



Hardware of BOXZ
1. Arduino 328P 2009 or some other board like Seeeduino
http://www.arduino.cc
http://www.seeedstudio.com/depot/seeeduino-v30-atmega-328p-p-669.html?cPath=132_133


2. Drive board
http://www.ladyada.net

3. Bluetooth Board
http://www.seeedstudio.com


4. Some other things
TT Reduction Gear with 6V DC Motor and 65MM Wheel x 2
TowerProSG90 Analog Servor x 2
5xAA battery case x 1
Breadboard Cable x 4
Cardboard 2MM
some M1.0x30MM, M3x10MM
Some step photo and overview

I will update some more training to show how we made BOXZ



Update:
BOXZ I/O define



BOXZ Pro(Plaxiglass)



BOXZ Pro overview



BOXZ Pro add some sensor(From Seeed Grove)



BOXZ Pro with LED Bar and Eye Component



Some Skin of BOXZ overview






>>>>>>>>>>>>>>>>>>>>>>>>>>Step by Step[Update 20120912]<<<<<<<<<<<<<<<<<<<<<<<<



BOXZ Base

http://www.instructables.com/id/BOXZ/

BOXZ Skin
http://www.instructables.com/id/BOXZCreeper/








Some more video

V001+ BOXZ base:
http://v.youku.com/v_show/id_XNDI0MzI4Njgw.html

V002+ BOXZ Pro:
http://v.youku.com/v_show/id_XNDQyODkzNTg4.html

BOXZ with Angry Birds:
http://v.youku.com/v_show/id_XNDQ5MzE0MjQw.html
http://www.youtube.com/watch?v=uhac5GExfZ8&feature=plcp

BOXZ with Minecraft Creeper:
http://v.youku.com/v_show/id_XNDM2NjQ0ODAw.html

BOXZ with Wifi Cam:
http://v.youku.com/v_show/id_XNDQ5MzAzMDc2.html
http://www.youtube.com/watch?v=qKOfHIA_GLw&feature=plcp



Some video about function testing

Iphone control BOXZ through MACBOOK:
http://v.youku.com/v_show/id_XNDIyMzIyNjYw.html

BOXZ controller test with openjumper:
http://v.youku.com/v_show/id_XNDM2NjA3MjIw.html

BOXZ LED test:
http://v.youku.com/v_show/id_XNDQzMTU1ODAw.html



Most of our public and update is here, but in Chinese
 http://weibo.com/leolite
http://www.geek-workshop.com/forum-73-1.html

Version info:
BOXZ Base: Easy and funny
BOXZ Pro: Support more sensor and use plexiglass

Size info:
The Cube of BOXZ: 128x128x128MM
The Skin of BOXZ: 130x130x130MM




Everything you can find it here, include the draw, arduino code and skin...Have fun!

Github https://github.com/leolite/BOXZ



Some of Skins are reference from the web:

http://www.cubeecraft.com/



Author: Leo

License: Attribution-NonCommercial-ShareAlike 3.0 Unported (CC BY-NC-SA 3.0)

http://creativecommons.org/licenses/by-nc-sa/3.0/









  • Power source: 5x AA 1.5V cells
  • Programming language: Arduino
