How Vibratory Bowl Feeders and Robotic Arms Work Together for Industrial Automation

Integration of Vibratory Bowl Feeders with Robotic Arms for Industrial Automation
The collaboration between vibratory bowl feeders and robotic arms enables industrial automation by combining two core processes: *precise feeding and *automated picking/placing*. Below is the detailed workflow and key considerations:

1. Role of the Vibratory Bowl Feeder: Ordered Part Feeding

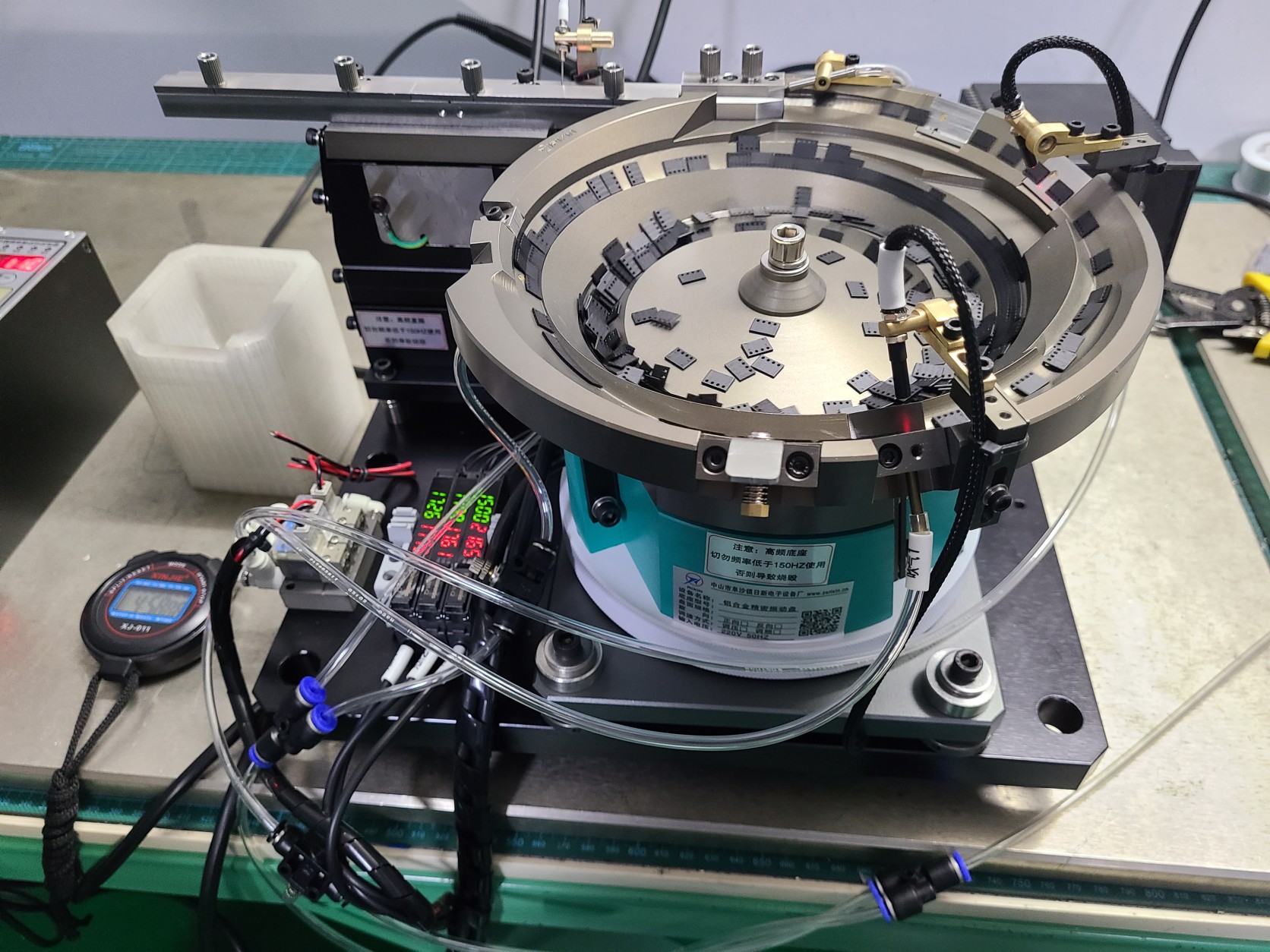

The vibratory feeder arranges randomly oriented parts (such as screws, electronic components, etc.) in a specified direction and sequence through vibration and track-based sorting. These parts are delivered to the outlet (feeding position), ensuring the robotic arm can stably pick the target item.

Key Parameters: Vibration frequency, track slope, and outlet position must be coordinated with the robot's range of motion.

2. Role of the Robotic Arm: Precise Picking and Processing

The robotic arm, following pre-programmed instructions, picks parts from the feeder outlet and performs tasks such as transferring, assembling, inspecting, or welding, before placing them at the designated location (e.g., on a conveyor or in a fixture).

Core Functions: Positioning accuracy (aligned with part dimensions), picking method (vacuum suction, gripper, magnetic, etc.), and motion path (linear, curved, spatial).

3. Coordination Workflow and Logic

1. Signal Interaction

   The vibratory feeder uses sensors (e.g., photoelectric switches) to detect whether parts are present at the outlet. If not, it activates feeding.
   After the robot finishes picking, it sends a feedback signal to the feeder to trigger the next feeding cycle (to prevent part buildup).

2. Position Calibration

   The outlet of the vibratory feeder must align with the robotic arm’s coordinate origin (via vision systems or mechanical positioning) to ensure accurate part pickup.

3. Speed Synchronization

   The feeding speed must match the robot’s working cycle (e.g., if the robot completes one cycle every 10 seconds, the feeder must complete sorting within 10 seconds).

4. Typical Applications

Electronics Assembly: The feeder supplies resistors, capacitors, etc.; the robot places them onto designated soldering points on a PCB.
Metalworking: The feeder arranges screws, nuts, etc.; the robot picks them up for automated fastening. For high-speed screw supply, an automatic screw feeder can be integrated.
Food Packaging: The feeder organizes uniformly shaped items (e.g., candies); the robot picks and places them into packaging boxes.

5. Supporting Technologies and Equipment

Vision Inspection Systems: Installed above the feeder or robot to recognize part orientation in real time and guide the robot to adjust its picking angle. If a part is misoriented, the system can trigger the feeder to reshuffle.
PLC Control Systems: Coordinate the actions of the feeder, robot, conveyor, and other equipment to achieve full process automation.
Error-Proofing Devices: Sensors at the outlet detect if a part meets requirements (size, orientation, etc.); nonconforming parts are returned for re-sorting.

6. Advantages and Key Considerations

Advantages: Reduced manual intervention, improved production efficiency, lower error rates, and suitability for high-volume, repetitive tasks.
Considerations:

  Work piece material must be compatible with the feeder (fragile items may require soft tracks).
  Regular maintenance of the vibration motor and tracks is essential to avoid unstable feeding due to wear.
  Robotic arms must be selected according to the weight of the parts.

By leveraging the capabilities of vibratory bowl feeders(https://vibratory-bowl.com/) and robotic arms, manufacturers can build highly efficient automated production lines, widely used in 3C electronics, automotive, and pharmaceutical industries.
